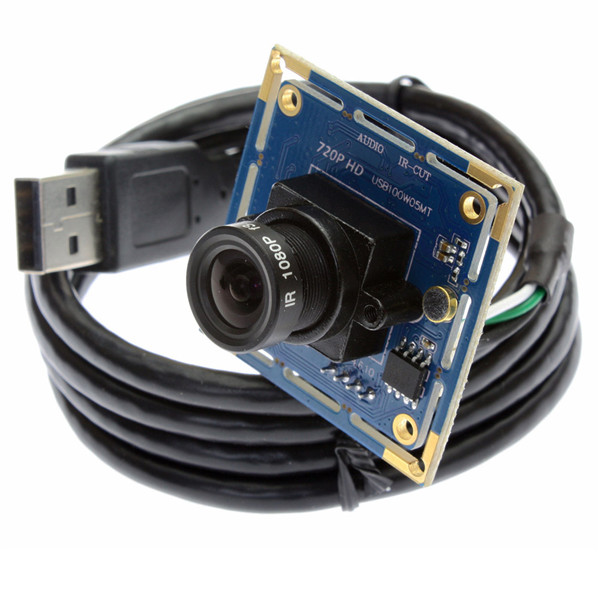

720P USB Camera USB2.0 OmniVision OV9712 Color Sensor Support Audio IR Cut IR LED with 3.6MM Lens

720P USB Camera USB2.0 OmniVision OV9712 Color Sensor Support Audio IR Cut IR LED with 3.6MM Lens

  • Model: ELP-USB100W05MT-L36
Add to Cart:

Add you Tags
Details
Download

    720P USB Camera USB2.0 OmniVision OV9712 Color Sensor Support Audio IR Cut IR LED

    Main Specifications

    Model

    ELP-USB100W05MT-L36

    Sensor

    OV9712

    Lens Size

    1/4 inch

    Pixel Size

    3.0um X 3.0um

    image area

    3888 µm x 2430 µm

    Max. Resolution

    1280(H)X720(V)

    Compression format

    MJPEG  / YUV2(YUYV)

    Resolution & frame

    1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps

    800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps

    352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps

    176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps

    S/N Ratio

    40dB

    Dynamic Range

    69dB

    Sensitivity

    3.7V/lux-sec@550nm

    Mini illumination

    0. 1lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG)

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    White balance, Backlight Contrast, Exposure

    Lens Parameter

    Standard 3.6mm, optional 2.1/2.5/2.8/6mm/ FOV(D)170 Degree

    Audio input

    Support

    IR CUT Connector

    Support  2P-1.25mm socket

    LED board test connector

    Support  2P-1.25mm socket

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Power supply

    DC5V

    Operating Voltage

    100mA~120mA

    Working current

     -10~70℃

    Working temperature

    -20~85℃

    Board size /Weight

    38X38mm(Compatible 32X32mm)/ about 30g

    Cable

    Standard  1M / optional 2M,3M,5M

    Operating system request

    Win XP/Vista/Win7/Win8

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
