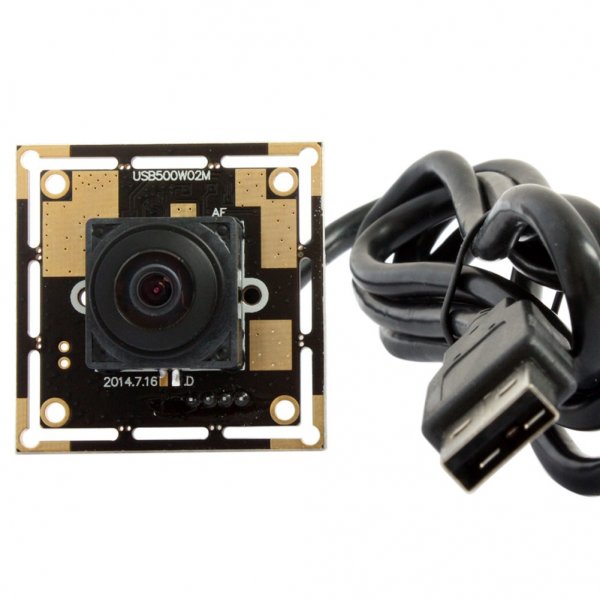

5MP Wide angle auto focus USB Camera module wide angle OV5640 USB Camera ELP-USB500W02M-AF170

Model: ELP-USB500W02M-AF170

Add you Tags

Product 5/28

Return to the Product List

Details

Download

Features:

* 5MP Wide angle auto focus USB Camera module
* 1/4” OV5640 CMOS sensor for high quality image
* Lens: Wide angle fisheye lens HFOV 140 degree
* MJPEG/YUY2 dual video format optional
* Mini size 38x38/32x32mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model	ELP-USB500W02M-AF170
Sensor	OV5640
Lens Size	1/4 inches
Pixel Size	1.4µm x1.4µm
image area	3673.6µmx2738.4µm
Max. Resolution	2592(H) X 1944(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG
Camera Board Assembly technique	SMT (ROSH)
Focus	Auto
Resolution	600LW/PH (Center)
S/N Ratio	36dB
Dynamic Range	68dB
Sensitivity	600 mV/Lux-sec
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Wide angle fisheye lens HFOV 140 degree
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	150mW (VGA); 200mW (QSXGA)
Working current	active: 140 mA standby: 20 µA
Working temperature	-20～70℃
Storage temperature	0～65℃
Board size /Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / 2M,3M,5M optional
Operating system request	Win XP/Vista/Win7/Win8 /Win9/ Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC
Certificate	CE&FCC
