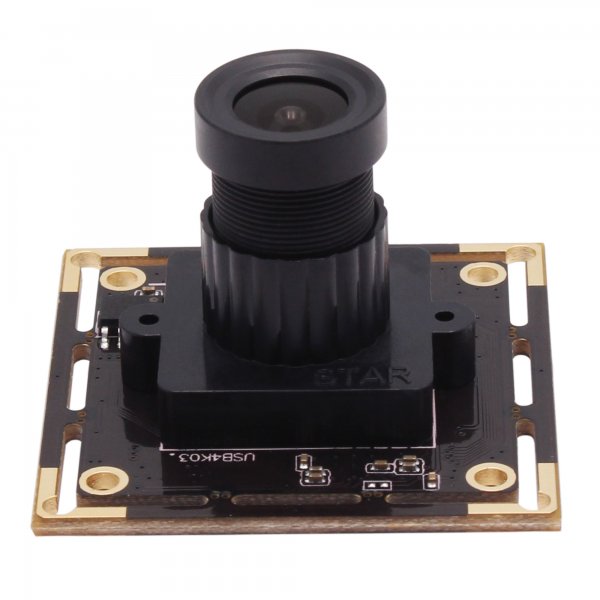

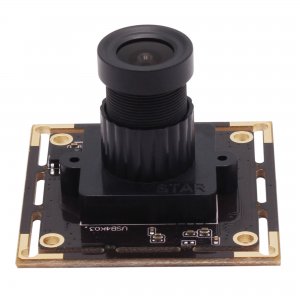

4K 3840*2160 High resolution USB Camera module with Sony IMX415 sensor Support Windows Linux Android

4K 3840*2160 High resolution USB Camera module with Sony IMX415 sensor Support Windows Linux Android

  • Model: ELP-USB4K03-L36
Add to Cart:

Add you Tags
Details
Download

    Features:

    * 4K 3840*2160 High resolution USB Camera module
    * 1/2.5Sony IMX415 sensor for high quality image
    * With HD 3.6mm M12 lens
    * High frame rate - MJPEG 3840*2160 30fps
    * MJPEG/YUY2 dual output format optional
    * Mini board size 38x38/32x32mm for embedded application
    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC

    Specification:

    Model NO.:

    ELP-USB4K03-L36

    Image Sensor

    SONY IMX415 (1/2.8” )

    Max. Resolution

    3840(H) *2160 (V)

    Sensitivity

    1000mV/Lux-sec

    Pixel Size

    1.45µmx1.45µm

    Compression format

    MJPEG  / YUY2(YUYV)

    Resolution & frame

    3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG

    2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG

    1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE

    1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG

    640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG

    3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2

    2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2

    1920x1080@ 5fps YUY2/1280x960@5fps YUY2

    1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2

    640x480@ 30fps YUY2 /  320x240@ 30fps YUY2

    Center definition

    1000LW/PH (Center)

    S/N Ratio

    30dB

    Sensitivity

    0.65V/lux-sec@550nm

    Minimum illumination

    0.2lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Auto Focus

    Support

    Adjustable parameters

    Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White

    Balance, Exposure

    Lens Parameter



    3.6mm M12 lens (HFOV 84 degree, VFOV 46degree)

    IR filter: 650±10nm

    Power supply& connector

    USB BUS POWER  4P-2.0mm socket

    Power Voltage

    DC5V

    Power Current

    200mA

    Board Size

    38*38/ 32*32MM

    Storage Temperature

    -20°C to 70°C

    Work Temperature

    0°C to 60°C

    USB Cable

    1M(2M/3M/5M optional)

    Operating System support

    Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
