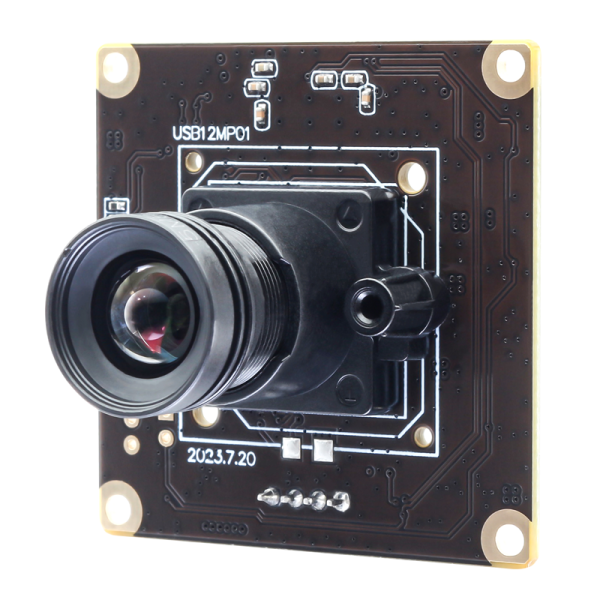

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Module with M12 6mm lens

Model: ELP-USB12MP01-L601

Add you Tags

Product 10/19

Return to the Product List

Details

Download

Features:

*1/2.3" SONY IMX577 Sensor

*Max Resolution:3840(H)*3040(V) 11.6MP

*3840x3040 MJPEG@20FPS, 3840x2880 MJPEG@20FPS, 3840x2160 MJPEG@30FPS, 1920x1080 MJPEG@120FPS

*HD M12 6mm lens (2.8mm,3.6mm,12mm,16mm,25mm, fisheye lens, no distortion lens...Many lens optional)

*38x38mm, small size, easy to embedded in kinds of smart machines.

*Standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)

*Free driver, Plug & Play

*Exposure, Hue, White Balance, Contrast, Gamma, Brightness....Parameters adjustable.

*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...

*Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

*OTG support

Specifications:

Model NO.:	ELP-USB12MP01-L601
Image Sensor	SONY IMX577 (1/2.3” )
Max. Resolution	3840(H) *3040 (V)
Sensor Size/ Image Size	10.7mmX8.5mm/5.95mmX4.71mm
Default. Resolution	3840(H) *2880(V)
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	3840X3040 MJPEG@20fps YUY2@1fps 3840X2880 MJPEG@20fps YUY2@1fps 3840X2160 MJPEG@30fps YUY2@1fps 2592X1944 MJPEG@30fps YUY2@1fps 2048X1536 MJPEG@30fps YUY2@3fps 1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@120fps YUY2@5fps 1280X960 MJPEG@120fps YUY2@5fps 1280X720 MJPEG@120fps YUY2@5fps 1024X768 MJPEG@120fps YUY2@5fps 960X720 MJPEG@120fps YUY2@5fps 800X600 MJPEG@120fps YUY2@20fps 640X480 MJPEG@120fps YUY2@30fps 320X240 MJPEG@120fps YUY2@30fps
Center Definition	1000LW/PH (Center)
S/N Ratio	24dB
Sensitivity	0.65V/lux-sec@550nm
Minimum illumination	0.1 lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC/ AWB/ AGC	Support
Auto Focus	Support optional
Adjustable Parameters	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure
Lens Parameter	M12 6mm lens, HFOV 61 degree/ VFOV 48 degree
Power Supply& Connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC 5V
Power Current	240mA
Board Size	38mm × 38mm
Storage Temperature	-20°C to 85°C
Working Temperature	-10°C to 65°C
USB Cable	1M(2M/3M/5M optional)
Operating System Support	Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
Optional Models	M12 Normal lens: ELP-USB12MP01-L281 (2.8mm HFOV 116 degree) ELP-USB12MP01-L361 (3.6mm HFOV 92 degree) ELP-USB12MP01-L601 (6mm HFOV 61 degree) ELP-USB12MP01-L12 (12mm HFOV 26 degree) ELP-USB12MP01-L16 (16mm HFOV 23 degree) ELP-USB12MP01-L25 (25mm HFOV 12 degree) No/Less distortion lens: ELP-USB12MP01-V100 (HFOV 88 degree) ELP-USB12MP01-LC1100 (HFOV 71 degree) ELP-USB12MP01-H100 ( HFOV 102 degree) ELP-USB12MP01-H110 (HFOV 118 degree) ELP-USB12MP01-H120 (HFOV 125-128 degree) Fisheye lens: ELP-USB12MP01-L170 (HFOV 164 degree) ELP-USB12MP01-L185 (HFOV >180 degree)
