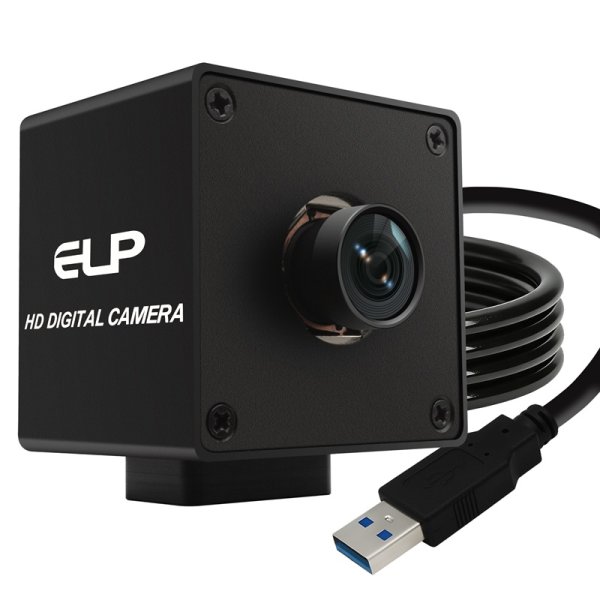

ELP 4K 60fps USB3.0 Camera with Autofocus Lens Large Sensor IMX678 UVC Mini Webcam

Model: ELP-U3CAM4K60-AFTKV100

Add you Tags

Product 6/18

Return to the Product List

Details

Download

Key Features:

* Excellent Imaging: Features a large 1/1.8" Sony IMX678 sensor

* High Resolution 4K @60FPS: Delivers stunning 3840x2160 with high frame rate 60fps @MJPEG and 23fps @YUY2, ensuring incredibly smooth and detailed video.

* Lens: M12 mount Autofocus Lens, no distortion, HFOV is about 100 degree.

* USB3.0 Output & 20pin Interface: Equipped with 20pin interfaces and USB3.0 output, improving the high speed to make sure you will not have issues with dropped frames .

* Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi...

Specifications:

Model	ELP-U3CAM4K60-AFTKV100 (AF Lens, HFOV 100°)
Options Lens	M12 Autofocus No Distortion Lens: ELP-U3CAM4K60-AFTKV100 (HFOV 100°) ELP-U3CAM4K60-AFTKV6 (HFOV 65°) ELP-U3CAM4K60-AFTKH90 (HFOV 90°) M12 Autofocus Nomal Lens: ELP-U3CAM4K60-AFTKL32 (3.2mm Lens, HFOV 130°) ELP-U3CAM4K60-AFTKL39 (3.9mm Lens, HFOV 120°) ELP-U3CAM4K60-AFTKL5 (5mm Lens, HFOV 94°) ELP-U3CAM4K60-AFTKL16 (16mm Lens, HFOV 25°)
Sensor	1/ 1.8” SONY IMX678
Max/ Default Resolution	3840(H)*2160(V)
Pixel Size	2.0 µm x 2.0 µm
Video Compression	MJPEG / YUY2(YUYV)
Resolution & Frame Rate (USB 3.0 Interface & Speed)	Under USB 3.0 Interface & Speed: 3840x2160 MJPEG 60fps/ YUY2 23fps 2880x2160 MJPEG 60fps/ YUY2 30fps 2592x1944 MJPEG 60fps/ YUY2 30fps 2560x1440 MJPEG 60fps/ YUY2 30fps 2048x1536 MJPEG 60fps/ YUY2 60fps 1600x1200 MJPEG 60fps/ YUY2 60fps 1920x1080 MJPEG 60fps/ YUY2 60fps 1280x960 MJPEG 60fps/ YUY2 60fps 1280x720 MJPEG 60fps/ YUY2 60fps 640x480 MJPEG 60fps/ YUY2 60fps
Resolution & Frame Rate (USB 2.0 Speed)	Under USB 2.0 Speed: 3840x2160 MJPEG 30fps/ YUY2 1fps 2880x2160 MJPEG 30fps/ YUY2 1fps 2592x1944 MJPEG 30fps/ YUY2 1fps 2560x1440 MJPEG 30fps/ YUY2 1fps 2048x1536 MJPEG 30fps/ YUY2 1fps 1600x1200 MJPEG 60fps/ YUY2 1fps 1920x1080 MJPEG 60fps/ YUY2 1fps 1280x960 MJPEG 60fps/ YUY2 1fps 1280x720 MJPEG 60fps/ YUY2 10fps 640x480 MJPEG 60fps/ YUY2 30fps
Central Definition	1000LW/PH(Center)
S/N Ratio	41dB
Min illumination	0. 1Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type	USB 3.0 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	f=3.24mm, M12 mount Autofocus Lens, No distortion, HFOV is approximately 100° Optional Lenses: M12 AF No distortion: 65°/ 90°/ 100° M12 AF Normal: 25°/ 94°/ 120°/ 130° (For other viewing angles, please contact us directly.)
Power Supply & Interface	USB Type-C Power Supply, Type-C
Operating Voltage	DC 5V
Working Current	230-260mA
Dimension	42x42x36mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	1.5m cable with USB3.0 port
Operating System Request	Win10/Win11 etc; Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above.
