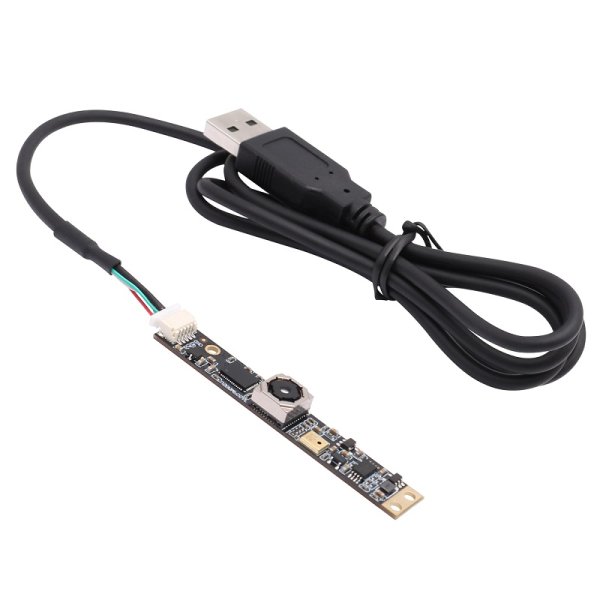

Sony IMX179 Sensor 8MP Long Strip Autofocus USB Camera Module

Sony IMX179 Sensor 8MP Long Strip Autofocus USB Camera Module

  • Model: ELP-USB8MP05AF-V62
Add to Cart: Units:  999

Add you Tags
Details
Download

    Features:

    *Sensor: 1/3.2” Sony IMX179 Sensor

    *High Resolution: 3264x2448 (8 megapixel)

    *Dimension: 62.3x9x6mm

    *Autofocus: Auto Focus with 62 degree lens

    *Frame Rate: 3264x2448 Mjpeg 15FPS

    *USB Cable: with 1m USB Cable

    *Parameters Adjustable: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure...

    *Free Driver: UVC, Driver Free, Plug & Play

    *Operating System: Compatible with Multi-System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...



    Specifications:



    Model

    ELP-USB8MP05AF-V62

    Sensor

    SONY IMX179

    Sensor Size

    1/3.2 inch

    Pixel Size

    1.4µm x 1.4µm

    Image Area

    6.18mm x 5.85mm

    Max. Resolution

    3264(H) X 2448(V)  8 Megapixel

    Compression Format

    MJPEG / YUY2 (YUYV)

    Resolution & Frame Rate

    3264X2448 MJPEG@15fps YUY2@1fps     2592X1944 MJPEG@15fps YUY2@2fps

    2048X1536 MJPEG@15fps YUY2@3fps     1600X1200 MJPEG@30fps YUY2@5fps

    1920X1080 MJPEG@ 25fps YUY2@5fps     1280X960 MJPEG@30fps YUY2@5fps

    1280X720 MJPEG@30fps YUY2@10fps     1024X768 MJPEG@30fps YUY2@10fps

    800X600 MJPEG@30fps YUY2@25fps     640X480 MJPEG@30fps YUY2@30fps

    320X240 MJPEG@30fps YUY2@30fps

    Focus

    Auto

    S/N Ratio

    34dB

    Dynamic Range

    72.5dB

    Sensitivity

    0.65V/Lux-sec@550nm

    Min Illumination

    0.5 Lux

    Shutter Type

    Electronic Rolling Shutter / Frame Exposure

    Connecting Port Type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class (UVC)

    OTG Protocol

    USB2.0 OTG

    AGC

    Auto

    AEC

    Auto

    AWB

    Auto

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure

    Lens Parameter

    AF LENS HFOV about 62 degree

    Power Supply

    USB BUS POWER  4P-2.0mm socket

    Operating Voltage

    DC5V

    Working Current

    150mA~240mA

    Working Temperature

    -10~70℃

    Storage Temperature

    -20~85℃

    Board Size /Weight

    62.3x9x6mm/ about 20g

    Cable

    Standard 1m

    Operating System Request

    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
