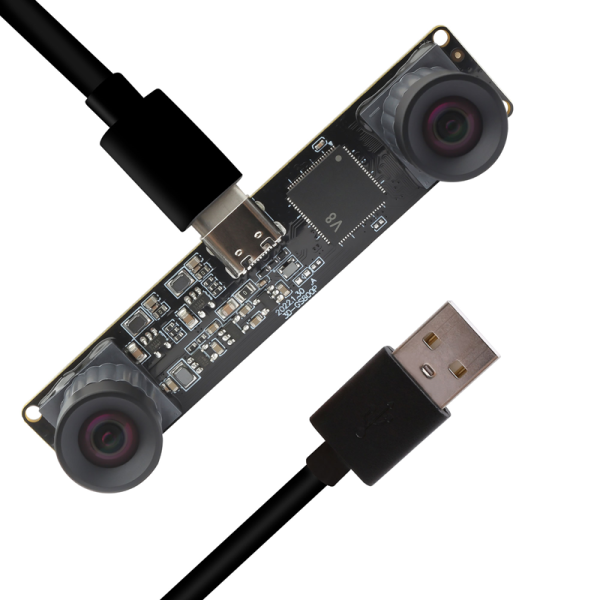

ELP 800P Global Shutter Monochrome Synchronous Dual Lens USB Camera Module No Distortion 63 Degree

ELP 800P Global Shutter Monochrome Synchronous Dual Lens USB Camera Module No Distortion 63 Degree

  • Model: ELP-USB3DGS800P-V83
 Sold Out

Add you Tags
Details
Download

    Features:



    800P Global Shutter Monochrome Black/White CMOS Sensor Synchronous Dual Lens USB Camera Module



    *Sensor: 1/4" OV9281 Sensor, black/white image and video



    *Sychronous dual lens camera: 2 megapixel 800P dual lens usb camera (Two images Synchronized)



    *High Rate: 2560X800@120fps /2560X720@120fps /1600X600@120fps /1280X480@120fps /640X240@210fps



    *HD Lens: With dual lens, no distortion 63 degree horizontal view angle (Many other lens optional)



    *Small size: 80x16.5mm type C connector usb camera module



    *UVC free driver: Plug and Play, simple to use, suitable for all kinds of users



    *System: Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC

     Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.



    *Multi-applications:800P Full dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system...



    *Parameters adjustable: USB web camera Parameters changable  Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...



    *Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi...





    Specifications:





    Model

    ELP-USB3DGS800P-V83 (HFOV 63 degree)


    optional for

    ELP-USB3DGS800P-V90 (HFOV 73 degree)

    ELP-USB3DGS800P-LC1100 (HFOV 49 degree)

    ELP-USB3DGS800P-H100 (HFOV 75 degree)

    ELP-USB3DGS800P-H110 (HFOV 86 degree)

    ELP-USB3DGS800P-H120 (HFOV 98 degree)

    Sensor

    OmniVision OV9281

    Lens Size

    1/4 inch

    Pixel Size

    3µm x3µm

    Max. Resolution

    2560(H)X800(V)

    Default Resolution

    2560(H)X800(V)

    Compression Format

    MJPEG

    Resolution & Frame Rate

    MJPEG:

    2560X800@120fps/ 2560X720@120fps/

    1600X600@120fps 1280X480@120fps/640X240@210fps

    Surface Mount Technology

    SMT

    Focus

    Fixed Focus

    Central Definition

    600 LW/PH(Center)

    S/NRatio

    37dB

    Dynamic Range

    70dB

    Sensitivity

    1.4V/lux-sec@550nm

    Minillumination

    0.3 Lux

    Shutter Type

    Global Shutter

    Connecting Port Type

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    AdjustableParameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure

    LensParameter

    M12 No Distortion Lens

    HFOV: 63 degree,

    VFOV: 42 degree

    (Many other lens optional)

    Power Supply

    USB BUS POWER Type-C

    Operating Voltage

    DC5V

    Working Current

    130mA~190mA

    Storage Temperature

    -20~85℃

    Working Temperature

    -10~60℃

    Board size /Weight

    80X16.5mm/ About 45g

    Cable

    Standard 1.2M

    Operating system request

    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC- OSX10.4.8 or later

    Android 4.0 or above with UVC
