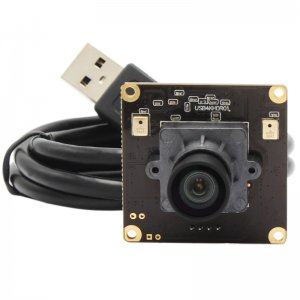

ELP 4K 3840*2160 High resolution USB Camera module wide angle USB Camera ELP-USB4KHDR01-L170

ELP 4K 3840*2160 High resolution USB Camera module wide angle USB Camera ELP-USB4KHDR01-L170

  • Model: ELP-USB4KHDR01-L170
Add to Cart:

Add you Tags
Details
Download

    ELP 4K 3840*2160 High resolution USB Camera module wide angle USB Camera ELP-USB4KHDR01-L170


    Features:

    * 4K 3840*2160 High resolution USB Camera module

    * 1/2.5”Sony IMX317 sensor for high quality image

    * With HD 100 degree no distortion M12 lens

    * With microphone for audio recording

    * High frame rate - MJPEG 3840*2160 30fps

    * MJPEG/YUY2 dual outpu format optional

    * Mini board size 38x38mm for embedded application

    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface

    * Low power consumption - ideal for portable equipment.

    * UVC compliant - support Windows, Linux, Android system with UVC


    Specifications:

    Item

    4K USB Camera Module with Sony IMX317 Sensor

    Model

    ELP-USB4KHDR01-L170

    Sensor

    Sony IMX317 (1/2.5” )

    Max. Resolution

    3840(H) *2160 (V)

    Sensitivity

    1000mV/Lux-sec

    Image area

    6100µmx4524µm

    Compression format

    MJPEG / YUY2(YUYV)

    Resolution & Frame rate

    MJPEG:
    3840x2160@ 30fps / 2592x1944@ 30fps 2048x1536@ 30fps /1600x1200@ 30fps 1920x1080@ 30fps/ 1280x1024@ 30fps / 1280x960@ 30fps /1280x720@ 30fps 1024x768@ 30fps/ 800x600@/ 30fps640x480@ 30fps/ 320x240@ 30fps
    YUY2:
    3840x2160@ 1fps / 2592x1944@ 1fps 2048x1536@ 3fps/ 1600x1200@ 3fps/ 1920x1080@ 3fps/ 1280x1024@3fps 1280x960@5fps/1280x720@ 5fps/
    1024x768@ 5fps/ 800 x 600@ 20fps 640x480@ 30fps/ 320x240@ 30fps

    Center Definition

    1000LW/PH (Center)

    S/N (Signal Noise Ratio)

    26dB

    Sensitivity

    0.65V/l@550

    Mini illumination

    0.2Lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure

    Lens Parameter

    HD L170--1.95mm fisheye lens  (Many other lens optional)

    Power Supply &
    Connector

    USB BUS POWER 4P-2.0mm socket

    Power Voltage

    DC5V

    Power Current

    200mA

    Board Size

    38*38mm

    Storage Temperature

     -20~70℃

    Working temperature

     0~60℃

    USB Cable

    Standard 1m ( 2m,3m,5m optional)

    Operating system request

    Win XP/Vista/Win7/Win8 / Win9/Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
