Model

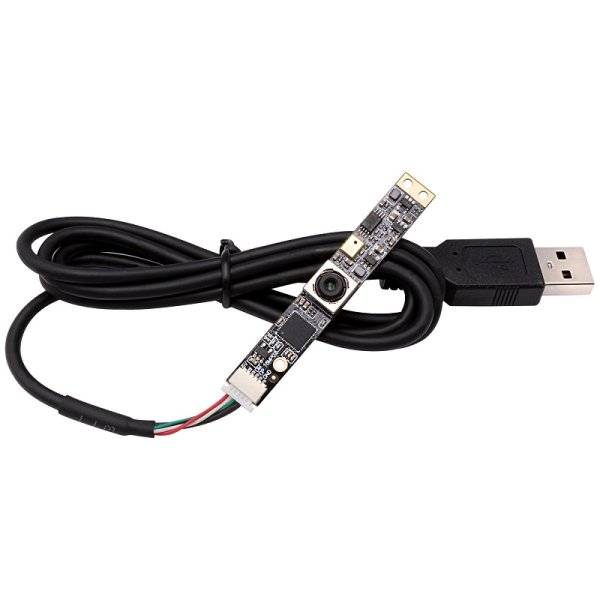

ELP-USB16MP02-AF68

Sensor

SONY IMX298

Sensor Size

1/2.8inch

Pixel Size

1.12um x 1.12um

Image Area

6.4mm x 5.3mm

Max. Resolution

4656(H) X 3496(V)  16 Megapixel

Compression Format

MJPEG / YUY2 (YUYV)

Resolution & Frame Rate

4656 x 3496 MJPEG@10fps  YUY2@1fps  4208 x 3120 MJPEG@10fps

4160 x 3120 MJPEG@10fps                        4000 x 3000 MJPEG@10fps

3264 x 2448 MJPEG@10fps  YUY2@1fps  2592 x 1944 MJPEG@10fps  YUY2@1fps

2320 x 1744 MJPEG@15fps  YUY2@1fps  2048 x 1536 MJPEG@30fps  YUY2@1fps

1920 x 1080 MJPEG@30fps  YUY2@5fps  1600 x 1200 MJPEG@30fps  YUY2@5fps

1280 x 960 MJPEG@30fps  YUY2@10fps  1280 x 720 MJPEG@30fps  YUY2@10fps

1024 x 768 MJPEG@30fps  YUY2@10fps  800 x 600 MJPEG@30fps  YUY2@15fps

 640 x 480 MJPEG@30fps

Min Illumination

0.5 Lux

Shutter Type

Electronic Rolling Shutter / Frame Exposure

Connecting Port Type

USB2.0 High Speed

Free Drive Protocol

USB Video Class (UVC)

AEC

Support

AWB

Support

AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure

Lens Parameter

AF LENS  Focus: 3.2mm , DFOV: about 78 Degree , HFOV: about 68 Degree

Power Supply

USB BUS POWER  4P-1.0mm Socket

Digital Audio

Support

Operating Voltage

DC 5V

Working Current

150mA~280mA

Working Temperature

-10~70℃

Storage Temperature

-20~85℃

Board Size /Weight

62.3 x 9 x 5.5mm / about 20g

Cable

Standard 1m

Operating System Request

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC (above Linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC
