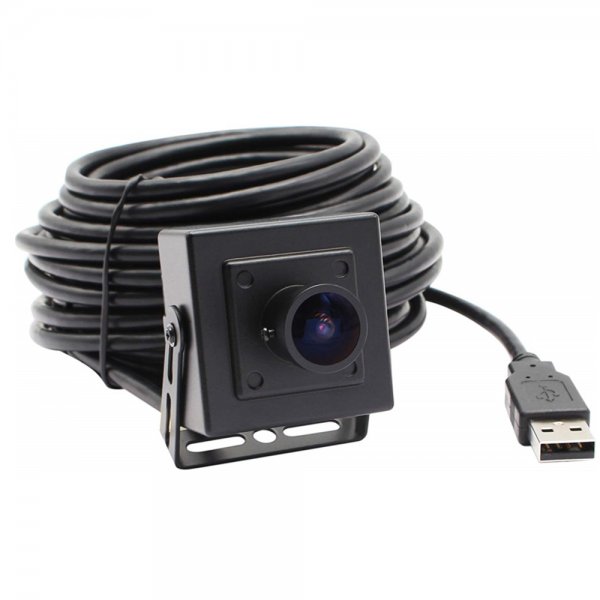

ELP 1080P wide angle 170 degree 3MP WDR USB Webcam mini size for ATM Machine monitoring

ELP 1080P wide angle 170 degree 3MP WDR USB Webcam mini size for ATM Machine monitoring

  • Model: ELP-USB3MP01H-BL170
Add to Cart:

Add you Tags
Details
Download

    Features:



    * 3MP WDR Mini Metal Box USB Camera with 170 degree fisheye lens
    * 1/3” Aptina AR0331 sensor for high quality image
    * Dynamic Range up to 100 dB
    * With HD 170 degree fisheye M12 lens
    * With microphone for audio recording
    * Support IR CUT & IR LED for no color distortion image day & night
    * H.264/MJPEG/YUY2 dual video format optional
    * Mini size 38x38mm for embedded application
    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC
    * Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG


    Specification:


    Model

    ELP-USB3MP01H-BL170(170 degree lens)


    Optional Model:ELP-USB3MP01H-BL21(2.1mm lens)

    ELP-USB3MP01H-BL28(2.8mm lens)
    ELP-USB3MP01H-BL36(3.6mm lens)

    ELP-USB3MP01H-BL60(6mm lens)

    ELP-USB3MP01H-BL80(8mm lens)

    ELP-USB3MP01H-BL12(12mm lens)

    ELP-USB3MP01H-BL16(16mm lens)

    ELP-USB3MP01H-BL180(180 degree lens)

    Sensor

    AR0331

    Lens Size

    1/3 inches

    Pixel Size

    2.2um X2.2um

    Max. Resolution

    2048X1536

    Compression format

    H.264 /MJPEG / YUV2(YUYV)

    Resolution & frame

    H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps
    MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@
    30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps
    YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@
    5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps

    S/N Ratio

    39dB

    Dynamic Range

    Up to 100 dB

    Sensitivity

    2.0V/lux-sec@550nm

    Mini illumination

    0. 05lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    Support OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    HD 170 degree fisheye M12 lens

    (2.1/2.8/6/8/12mm or fisheye lens or no distortion lens Optional)

    Digital audio

    High quality digital MIC, support single, dual channel

    IR CUT Connector

    Support 2P-1.25mm socket

    LED board power connector

    Support 2P-2.0mm socket

    Power supply

    USB BUS POWER 4P-2.0mm socket

    Operating Voltage

    DC5V

    Working current

    140mA~200mA

    Working temperature

     -10~70℃

    Storage temperature

     -20~85℃

    Board size /Weight

    38X38mm / about 30g

    Cable

    Standard 1M / 2M,3M,5M optional

    Operating system request

    Win7 Win8 Win10 Win11
    Linux 2.6 or above
    Android 4.0 or above
