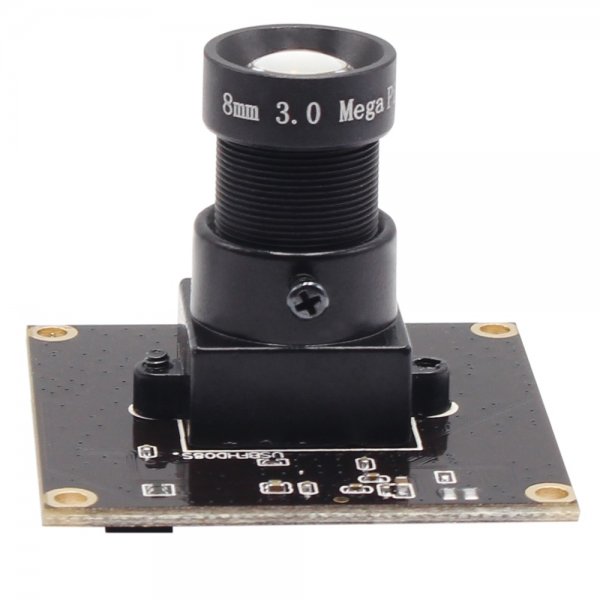

CMOS OV4689 Sensor Full HD 2 megapixel 1920x1080 60FPS Camera module USB with camera with 8mm lens

CMOS OV4689 Sensor Full HD 2 megapixel 1920x1080 60FPS Camera module USB with camera with 8mm lens

  • Model: ELP-USBFHD08S-L80
Add to Cart:

Add you Tags
Details
Download

    Features:

    * Full HD 1080P free driver USB2.0 high speed 60, 120, 260fps usb camera

    * USB Camera with 1/3" OV4689 CMOS Sensor

    ​* High speed  Mjpeg 260fps @640x360,  120fps @1280x720,  60fps @1920x1080   USB camera module.

    * Mini micro USB webcam, with standard 1m cable (2m, 3m, 5m optional).

    * USB with camera for  WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

    * Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.



    Specification:

    Model

    ELP-USBFHD08S-L80  (8mm)

    Optional Model

    ELP-USBFHD08S-L21 (2.1mm)                       ELP-USBFHD08S-L28 (2.8mm)
    ELP-USBFHD08S-L29  (2.9mm)                      ELP-USBFHD08S-L36 (3.6mm)
    ELP-USBFHD08S-L60 (6mm)                          ELP-USBFHD08S-L12 (12mm)
    ELP-USBFHD08S-L170 (fisheye lens, HFOV about 120 degree)
    ELP-USBFHD08S-L180 (fisheye lens, HFOV >180 degree)
    ELP-USBFHD08S-LC1100 (No distortion Lens)
    All above models, specifications are same, just lens different

    Resolution & FPS

    1920X1080 MJPEG@ 60fps
    1280X720 MJPEG@ 120fps
    640X360 MJPEG@ 260fps

    Sensor

    OV4689 Sensor

    Connecting Port Type

    USB2.0  High speed

    Sensor Size

    1/3 inch

    Support free driver

    USB Video Class(UVC)

    Pixel Size

    2.0μm x 2.0μm

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Mini illumination

    0.1Lux

    AEC

    Support

    Max. Resolution

    FULL HD 1920(H)x1080(V)pixels

    AEB

    Support

    Picture format

    MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens Parameter

    8mm (2.1mm/ 2.8mm/2.9mm, 3.6mm/ 6mm/ 12mm/ No distortion /Fisheye 170 Degree,180Degree optional)

    Adjustable parameters

    Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 1m/ Optional 2m,3m,5m

    work temperature

    DEGREES(-20~70)

    Board Size/
    Weight

    38*38mm

    Certifications

    FCC and CE

    Power supply

    USB BUS POWER

    Power Supply

    DC 5V

    USB Protocol

    USB2.0 HS/FS

    Operating Voltage

    150mA~185mA

    OTG protocol

    USB2.0 OTG

    Special function

    High FPS

    Night vision

    Without (Do not advice Connect IR LED Board)

    LED board power connector

    Support, 2P-2.0mm socket

    Support OS

    WinXP/Vista/WIN7/WIN8 / WIN9/WIN10/WIN11 etc.
    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above
