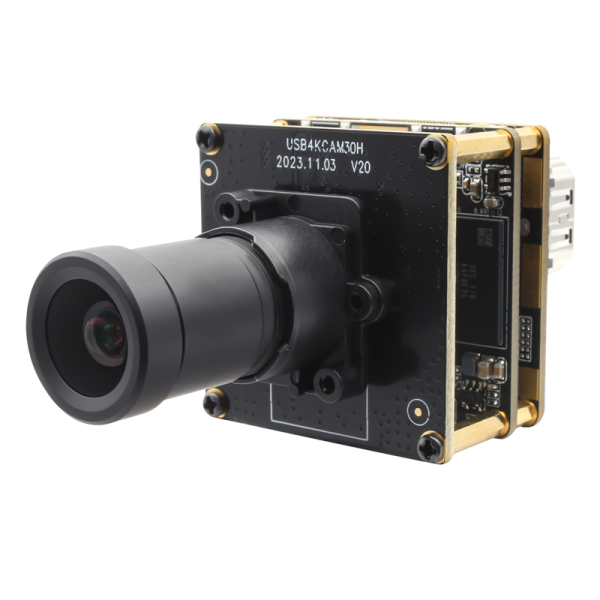

4K USB3.0 & HDMI CAMERA MODULE WITH BLACK LIGHT 4MM LENS

4K USB3.0 & HDMI CAMERA MODULE WITH BLACK LIGHT 4MM LENS

  • Model: ELP-USB4KCAM30H-LH4
 Sold Out

Add you Tags
Details
Download

    Features:

    *Sensor: 1/2.8” Sony IMX415 Sensor

    *Resolution: 3840x2160

    *Compression: MJPEG/YUY2/H.264

    *Frame Rate: 3840x2160 MJPEG/H.264 60fps

    *Lens:
    M16 Black light 4mm lens (Many other lens optional)

    *Power Supply: USB3.0 Type-C Power Supply

    *Interface: Type-C & HDMI

    *Zoom: 2X Digital Zoom

    *Cable: 2pcs Cables (1pcs 1.5m cable with Type-C & USB3.0 port; 1pcs 1.5m cable with HDMI port)

    *Free Driver: UVC, driver free, Plug & Play

    *Operating System: Compatible with Multi-System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...



    Specification:

    Model

    ELP-USB4KCAM30H-LH4

    Sensor

    1/2.8” SONY IMX415

    Max Resolution

    3840(H)*2160(V)

    Sensitivity

    0.65V/lux-sec@550nm

    Pixel Size

    1.45µm x 1.45µm

    Video Compression

    MJPEG / YUY2(YUYV) / H.264

    Resolution & Frame Rate

    3840x2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps

    2560x1440 MJPEG 60fps/ H.264 60fps /

    1920x1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    1280x720 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    640x480 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    Image Processing Time

    About 10 seconds after opening the preview software

    Central Definition

    1000LW/PH(Center)

    S/N Ratio

    30dB

    Min illumination

    0.2 Lux

    Shutter Type

    Electronic Rolling Shutter/ Frame Exposure

    Connecting Port Type

    USB 3.0 Interface &HDMI v1.4 Interface

    AEC/AWB/AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure

    Lens Parameter

      M16 Black light 4mm lens;

      Optional M12 12mm/16mm/25mm, No distortion (FOV 80-125 degree),

      150 degree/180 degree Fisheye lens, M16 4mm lens etc.



    Display Modes & Power Supply

    I.  USB Output (USB Bus Power)

    II.  HDMI Output (Power by Portable Power Bank / Charging Adapter )

    III.  USB Output +HDMI Output Simultaneous (USB Bus Power)

    Operating Voltage

    DC 5V

    Working Current

    700-780mA

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    - 10°C to 70°C

    USB Cable

    1.5m cable with Type-C & USB 3.0 port (2m, 3m optional)

    HDMI Cable

    1.5m cable with HDMI ports

    Operating System Request

    Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC

    MAC-OSX10.4.8 or later

    Android5.x or above
