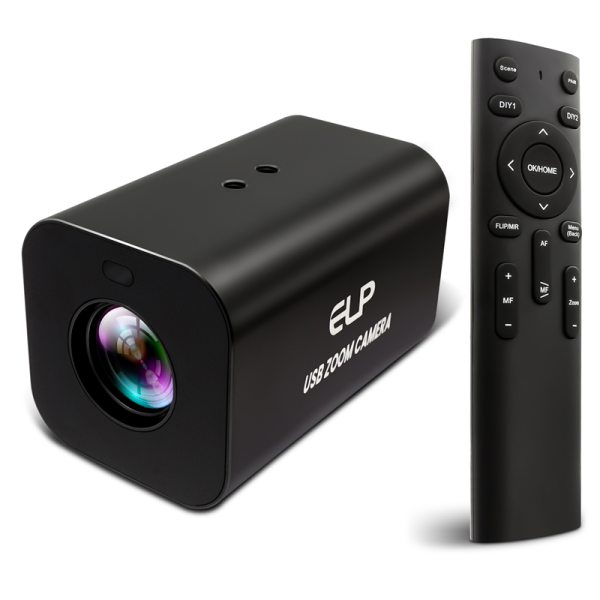

4K 12X Zoom HDMI Autofocus 1080P 60fps Infrared Remote Control H.265 H.264 USB Camera Metal Case

4K 12X Zoom HDMI Autofocus 1080P 60fps Infrared Remote Control H.265 H.264 USB Camera Metal Case

  • Model: ELP-USB4KCAM06ZF-B12
Add to Cart: Units:  100

Add you Tags
Details
Download

    Features:



    * 4K 3840*2160 High resolution USB Camera



    * Sony 1/2.8” CMOS sensor for high quality image



    * TOF Laser Fast Autofocus: 200ms, also could manual focus, HFOV 72 degree, no distortion



    * Focus Mode: Auto Focus/Manual Focus switching.



    * Zoom: 12X zoom-10X optical zoom and 1.2X digital zoom



    * Lens: 10X optical zoom



    * High frame rate - MJPEG 3840*2160 @30fps/1920*1080 @60fps; H.264/H.265 1920*1080 @30fps



    * MJPEG/YUY2/H.264/H.265 output format optional

     -USB output:

      MJPEG-3840x2160@30fps, 2560x1440@30fps, 1920x1080@60fps, 1280x720@60fps, 640x480@60fps

      H.264/H.265-1920x1080@30fps, 1280x720@30fps, 640x480@30fps
     -HDMI Output: 1920x1080@60fps



    * Interface: Type-C & HDMI



    * Remote Control Function: 2.4G wireless infrared remote control



    * Advanced features: for more freedome in your DIY video creation. Autofocus /Manual Focus Dual Switching, Four Scenes Switching, Support Customized Image Switching, One-touch Image Restoration & Exition from Customized Mode. Mirror Imaging, Flipping, White Balance Auto Calibration in CB Mode



    * UVC compliant - support Windows, Linux, Android system with UVC



    Specifications:



    Model No.:

    ELP-USB4KCAM06ZF-B12 (12X Zoom)



    option for:

    ELP-USB4KCAM06ZF-B21 (21X Zoom)

    Zoom Range

    12X Zoom
    (10X Optical Zoom,1.2X Digital Zoom）

    Sensor

    Image Sensor

    SONY 4K 1/2.8 inch CMOS Sensor

    Pixel Size

    2.0μm X 2.0μm

    Scanning System

    4:3/16:9 Progressive Scan

    Synchronization System

    Internal Synchronization

    Effective Resolution

    3840（H）X2160(V)

    Min. illumination

    0.2 Lux

    Horizontal Resolution

    1000TVL

    Compression Format

    MJPEG / YUY2(YUYV)/H.264/H.265

    Resolution & Frame

    MJPEG:
    3840x2160@ 30fps MJPEG /
    2560x1440@ 30fps MJPEG
    1920x1080@ 60fps MJPEG/
    1280x720@60fps MJPE
    640x480@ 60fps MJPEG

    H.264/H.265:
    1920x1080@ 30fps / 1280x720@ 30fps/ 640x480@ 30fps

    YUY2:
    1920x1080@ 5fps / 1280x720@ 10fps
    640x480@ 30fps

    HDMI:
    1920x1080@ 60fps

    Optical

    Lens

    Autofocus,

    10X Optical Zoom F=4.8mm-48.2mm

    Zoom Speed

    Wide~Tele: About 3.0s   Tele~Wide: About 2.6s

    Focus Mode

    Auto/Manual

    Focus Range

    About 10cm~∞(Wide)   About 50cm~∞(Tele)

    Field of View Angle

    About 72°(Wide)   About 7.2°(Tele)

    Function

    Automatic Aperture

    Auto/Manual

    Exposure

    Auto/Manual

    White Balance

    Auto/Manual

    Electronic Rolling Shutter

    1/2~1/10000(s)

    Remote Control

    2.4G wireless remote control

    Menu

    Function menu in Chinese and English

    Noise Reduction

    2D&3D noise reduction

    Other Functions

    Gamma, Mirror Image, Flips, Anti-flicker

    Communi-cation Mode

    UVC Protocol

    Standard UVC protocol

    Display Modes & Power Supply

    I. USB Output
    II. HDMI Output
    III. USB Output +HDMI Output Simultaneous

    Working Temperature

    -20°C~60°C

    Power Supply

    DC 5V, 2A

    Size

    Metal Case, 66.5x66.5x104.6mm

    USB Cable

    3m cable with Type-C & USB 3.0 port

    HDMI Cable

    1.5m cable with HDMI ports

    Operating System Request

    Win7/Win8/Win9/Win10/Win11 etc.
    Linux with UVC
    MAC-OSX10.4.8 or later
    Android5.x or above
