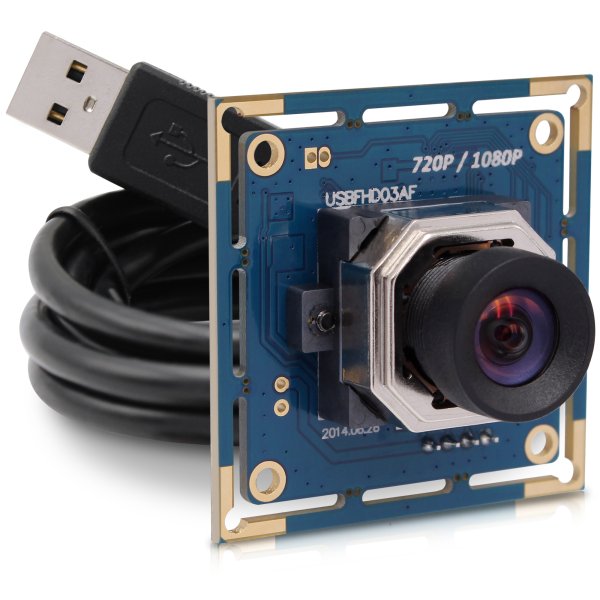

Model

ELP-USBFHD03AF-A100

Main Resolution & FPS

1920 (H) x 1080 (V) pixels   MJPEG 30fps      YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps      YUY2 6fps
1280 (H) x 720 (V) pixels     MJPEG 60fps      YUY2 9fps
640 (H) x 480 (V) pixels     MJPEG 100fps      YUY2 30fps
320 (H) x 240 (V) pixels     MJPEG 100fps      YUY2 30fps

Sensor

CMOS OV2710

Connecting Port Type

USB2.0 High speed

Sensor Size

1/2.7 inch

Support free driver

 USB Video Class(UVC)

Pixel Size

3μm x 3μm

Shutter Type

Electronic rolling shutter/ Frame exposure

Image Area

5856μm x 3276μm

AEC

 Support

Max. Resolution

FULL HD 1920(H)x1080(V)pixels

AEB

 Support

Picture format

MJPEG or YUY2(YUYV)

AGC

Support

Lens Parameter

DFOV:100 degree,  HFOV : About 85 degree , with autofocus Motor

Adjustable parameters

 Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure
White balance,Backlight Contrast

Cable

Standard 1m / Optional 2m,3m,5m

work temperature

 DEGREES(-20~70)

Board Size/
Weight

38*38mm/32mm*32mm optional / about 30g

Certifications

FCC and CE

Mini illumination

0.05lux

Power Supply

 DC 5V

USB Protocol

 USB2.0 HS/FS

Operating Voltage

120mA~220mA

OTG protocol

USB2.0 OTG

Special function

Lens correction/ Defective pixel correction/ Black sun cancellation

Night vision

 without night vision

LED board power connector

Support, 2P-2.0mm socket

Support OS

WinXP/Vista/WIN7/WIN8 /WIN9/WIN10
Linux with UVC
 Mac-OS X 10.4.8 or later
Wince with UVC,
Android 4.0 or above
