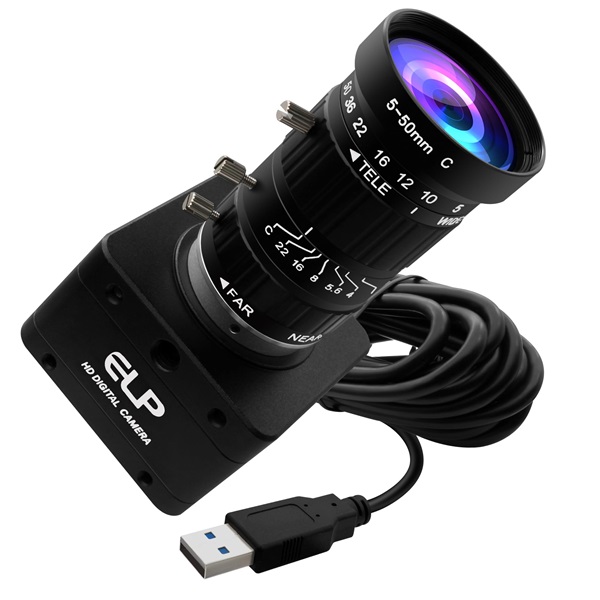

ELP 20MP USB3.0 Camera 1/1.8 AR2020 Sensor with Varifocal 5-50mm lens Manual 10X Optical Zoom

Model: ELP-U3CAM20MP01-IB(5-50B)

Add you Tags

Product 4/13

Return to the Product List

Details

Download

Key Features:

* Excellent Sensor Performance: Features a large 1/1.8'' Onsemi AR2020 sensor, which is the high standard in terms of image quality and sensitivity performance.

* High Resolution 20MP @27.5FPS: Delivers stunning 5120x3840 resolution at a fluid 27.5 frames per second via MJPEG, ensuring incredibly smooth and detailed video.

* USB3.0 Output & Type C Interface: Equipped with Type C interfaces and USB3.0 output, improving the high speed to make sure you will not have issues with dropped frames .

* Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi.

Specifications:

Model	ELP-U3CAM20MP01-IB(5-50B) (CS 5-50mm lens, 10X optical zoom)
Options Lens	CS Varifocal Lens: ELP-U3CAM20MP01-IB(3.6-10) (CS 3.6-10mm lens, 3X optical zoom) ELP-U3CAM20MP01-IB(10-55B) (CS 10-55mm lens, 5X optical zoom) ELP-U3CAM20MP01-IB(5-50B) (CS 5-50mm lens, 10X optical zoom) CS Manual Focus Lens: ELP-U3CAM20MP01-IBC8 (CS 8mm lens) ELP-U3CAM20MP01-IBC12 (CS 12mm lens) ELP-U3CAM20MP01-IBC16 (CS 16mm lens) ELP-U3CAM20MP01-IBC25 (CS 25mm lens) ELP-U3CAM20MP01-IBC35 (CS 35mm lens) ELP-U3CAM20MP01-IBC50 (CS 50mm lens)
Sensor	1/ 1.8” Onsemi AR2020
Max/ Default Resolution	5120(H)*3840(V)
Pixel Size	2.0 µm x 2.0 µm
Video Compression	MJPEG / YUY2(YUYV)
Resolution & Frame Rate (USB 3.0 Interface & Speed)	Under USB 3.0 Interface & Speed: 5120x3840 MJPEG 27.5fps/ YUY2 7.5fps 5120x2880 MJPEG 30fps/ YUY2 10fps 4608x3456 MJPEG 27.5fps/ YUY2 10fps 4096x3072 MJPEG 27.5fps/ YUY2 15fps 4000x3000 MJPEG 27.5fps/ YUY2 15fps 4096x2160 MJPEG 30fps/ YUY2 20fps 3840x2160 MJPEG 30fps/ YUY2 23fps 3264x2448 MJPEG 27.5fps/ YUY2 23fps 2592x1944 MJPEG 27.5fps/ YUY2 27.5fps 2560x1440 MJPEG 30fps/ YUY2 30fps 2048x1536 MJPEG 27.5fps/ YUY2 27.5fps 1600x1200 MJPEG 27.5fps/ YUY2 27.5fps 1920x1080 MJPEG 30fps/ YUY2 30fps 1280x960 MJPEG 27.5fps/ YUY2 27.5fps 1280x720 MJPEG 30fps/ YUY2 30fps 640x480 MJPEG 27.5fps/ YUY2 27.5fps
Resolution & Frame Rate (USB 2.0 Speed)	Under USB 2.0 Speed: 5120x3840 MJPEG 20fps 5120x2880 MJPEG 23fps 4608x3456 MJPEG 23fps 4096x3072 MJPEG 27.5fps 4000x3000 MJPEG 27.5fps 4096x2160 MJPEG 30fps 3840x2160 MJPEG 30fps 3264x2448 MJPEG 27.5fps 2592x1944 MJPEG 27.5fps 2560x1440 MJPEG 30fps 2048x1536 MJPEG 27.5fps 1600x1200 MJPEG 27.5fps 1920x1080 MJPEG 30fps 1280x960 MJPEG 27.5fps/ YUY2 7.5fps 1280x720 MJPEG 30fps/ YUY2 10fps 640x480 MJPEG 27.5fps/ YUY2 27.5fps
Central Definition	1000LW/PH (Center)
S/N Ratio	41dB
Min illumination	0.1Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type	USB 3.0 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	CS Mount 5-50mm Varifocal Lens, manual 10X Optical Zoom; Optional Lenses: CS Varifocal lens: 3.6-10mm lens/ 5-50mm lens CS Manual Focus lens: 8mm/12mm/16mm/25mm/35mm/50mm lens
Power Supply & Interface	USB Type-C Power Supply, Type-C Interface
Operating Voltage	DC 5V
Working Current	220-260mA
Dimension	50.2x50.2x33.5mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	1.2m cable with USB3.0 Type-C port
Operating System Request	Win10/Win11 etc. Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above
