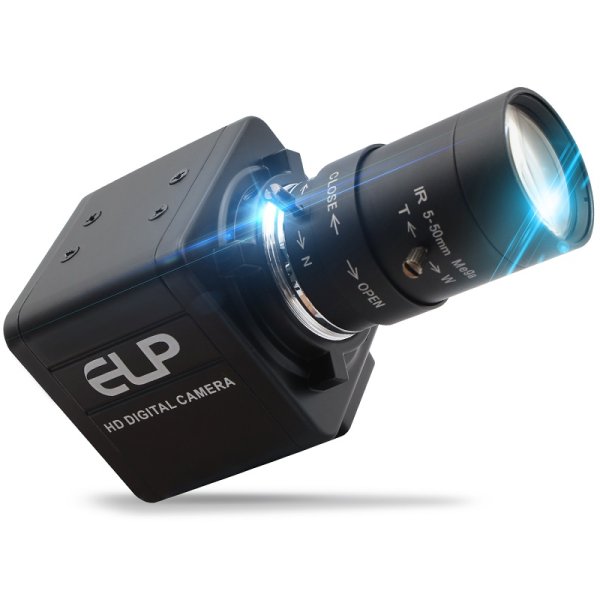

ELP UVC Free driver IMX415 varifocal 5-50mm Sensor conference camera USB 4K HD Webcam

ELP UVC Free driver IMX415 varifocal 5-50mm Sensor conference camera USB 4K HD Webcam

  • Model: ELP-USB4K03-MFV(5-50)
Add to Cart:

Add you Tags
Details
Download

    Features:

    * 4K 3840*2160 High resolution USB 4K HD webcam
    * 1/2.8” IMX415 sensor for high quality image
    * With HD 2.8-12mm/5-50mm manuals zoom and focus varifocal CS lens
    * High frame rate - MJPEG 3840*2160 30fps
    * MJPEG/YUY2 dual outpu format optional
    * Mini board size 38x38mm for embedded application
    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC

    Specification:

    Model NO.

    ELP-USB4K03-MFV(5-50)

    Optional Models

    ELP-USB4K03-MFV(2.8-12)
    ELP-USB4K03-SFV(2.8-12)
    ELP-USB4K03-SFV(5-50)

    Image Sensor

    SONY IMX415 (1/2.8” )

    Max. Resolution

    3840(H) *2160 (V)

    Sensitivity

    1000mV/Lux-sec

    Pixel Size

    1.45µmx1.45µm

    Compression format

    MJPEG / YUY2(YUYV)

    Resolution & frame

    3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
    2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
    1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
    1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
    640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
    3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
    2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2
    1920x1080@ 5fps YUY2/1280x960@5fps YUY2
    1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
    640x480@ 30fps YUY2 / 320x240@ 30fps YUY2

    Center definition

    1000LW/PH (Center)

    S/N Ratio

    30dB

    Sensitivity

    0.65V/lux-sec@550nm

    Minimum illumination

    0.2lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Auto Focus

    Support

    Adjustable parameters

    Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White
    Balance, Exposure

    Lens Parameter

    CS 5-50mm 2.8-12mm optional)

    Power supply& connector

    USB BUS POWER 4P-2.0mm socket

    Power Voltage

    DC5V

    Power Current

    200mA

    Dimension

    See the image as below

    Storage Temperature

    -20°C to 80°C

    Work Temperature

    -10°C to 70°C

    USB Cable

    Standard 3m / Optional 1m,2m,5m...

    Operating System support

    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
    Linux with UVC (above Linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC
