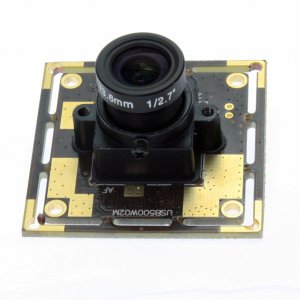

ELP OV5640 Sensor CMOS Camera Module free driver UVC HD USB Camera ELP-USB500W02M-L36

ELP OV5640 Sensor CMOS Camera Module free driver UVC HD USB Camera ELP-USB500W02M-L36

  • Model: ELP-USB500W02M-L36
Add to Cart:

Add you Tags
Details
Download

    ELP OV5640 Sensor CMOS Camera Module free driver UVC HD USB Camera  ELP-USB500W02M-L36


    Features:

    *5MP HD USB Camera Board with 1/4" OV5640 sensor
    *UP to 2592 (H) x 1944 (V) resolution
    *High speed USB 2.0 interface for high resolution PC camera interface.
    *Super small outline and thin profile for embedded applications. 38x38mm/32x32mm optional
    *Low power consumption – ideal for portable equipment.
    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
    *Camera with UVC.


    Specifications:

    Item

    5 Megapixel OV5640 USB Camera Module with 3.6mm lens

    Model

    ELP-USB500W02M-L36

    Optional Models

    ELP-USB500W02M-L21 (2.1mm)                   ELP-USB500W02M-L28 (2.8mm)
    ELP-USB500W02M-L60 (6mm)                      ELP-USB500W02M-L80 (8mm)
    ELP-USB500W02M-L12 (12mm)                    ELP-USB500W02M-L100 (No distortion lens)
    ELP-USB500W02M-L170 (fisheye lens, HFOV about 140-150 degree)

    All above models, specifications are same, just lens different

    Resolution & FPS

    2592x1944@ 15fps MJPEG                             2048x1536@ 15fps MJPEG
    1600x1200@ 15fps MJPEG                             1920x1080@ 15fps MJPEG
    1280x1024@15fps MJPEG                              1280x720@ 30fps MJPEG
    1024 x 768@ 30fps MJPEG                              800 x 600@ 30fps MJPEG
    640x480@ 30fps MJPEG                                  320x240@ 30fps MJPEG

    Sensor

    Omnivision OV5640

    Connecting Port Type

    USB2.0 High speed

    Sensor Size

    1/4 inch

    Support free driver

     USB Video Class(UVC)

    Pixel Size

    1.4µm x1.4µm

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Max. Resolution

    2592 (H) *1944 (V)

    AEB  AEC

     Support

    Picture format

    MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens Parameter

    3.6mm,
    optional2.1/3.6/6/8/12mm/ FOV(D)170 Degree

    Adjustable parameters

     Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 1m / Optional 2m,3m,5m

    work temperature

     DEGREES(-20~70)

    Board Size

    38x38mm/32x32mm

    Certifications

    FCC and CE

    Mini illumination

    0.1lux

    Power Supply

     DC 5V

    USB Protocol

     USB2.0 HS/FS

    Operating Voltage

    150mW- 200mW

    OTG protocol

    USB2.0 OTG

    Key Features

    High Resolution

    Night vision

     without night vision
    (Can connect IR LED board to get night vision function)

    LED board power connector

    Support, 2P-2.0mm socket

    Support OS

    WinXP/Vista/WIN7/WIN8 /WIN9/WIN10
    Linux with UVC
     Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above
