Model NO.:

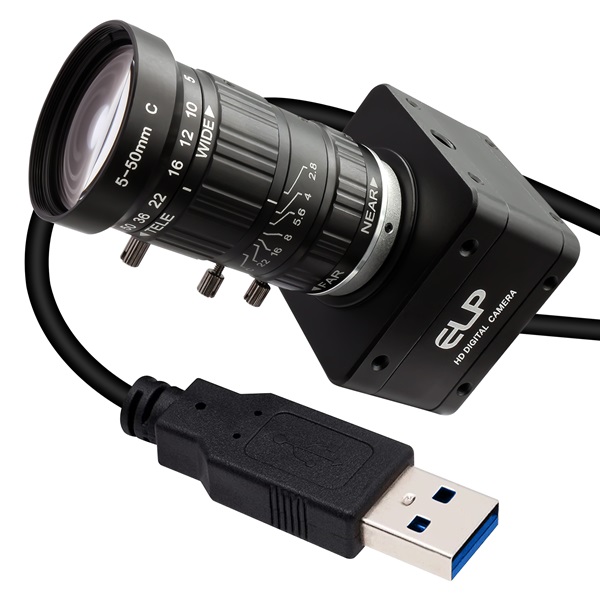

ELP-U3CAM12MP01-IB(5-50B) CS 5-50mm lens, 10X optical zoom

Options lens

ELP-U3CAM12MP01-IB(10-55B) CS 10-55mm lens, 5X optical zoom

ELP-U3CAM12MP01-IB(3.6-10) CS 3.6-10mm lens, 3X optical zoom

Image Sensor

SONY IMX577 (1/2.3” )

Max. Resolution

4000(H) *3000 (V)

Sensor Size/ Image Size

10.7mmX8.5mm/5.95mmX4.71mm

Pixel Size

1.55µm x 1.55µm

Compression Format

MJPEG  / YUY2 (YUYV)

Resolution & Frame Rate

(USB 3.0 Interface & Speed)

Under USB 3.0 Interface & Speed:

4000x3000@ 30fps MJPEG/YUY2 10fps

3840x2160@ 60fps MJPEG/YUY2 20fps

3264x2448@ 30fps MJPEG/YUY2 20fps

2560x1440@ 60fps MJPEG/YUY2 30fps

1920x1080@ 230fps MJPEG/YUY2 60fps

1280x720@ 230fps MJPEG/YUY2 120fps

640x360@ 230fps MJPEG/YUY2 230fps

Resolution & Frame Rate

(USB 2.0 Speed)

Under USB 2.0 Speed:

4000x3000@ 30fps MJPEG

3840x2160@ 30fps MJPEG

3264x2448@ 30fps MJPEG

2560x1440@ 60fps MJPEG

1920x1080@ 120fps MJPEG

1280x720@ 230fps MJPEG/YUY2 10ps

640x360@ 230fps MJPEG/YUY2 30fps

Center Definition

1000LW/PH (Center)

S/N Ratio

49dB

Sensitivity

0.65V/lux-sec@550nm

Minimum illumination

0.1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB 3.0 Interface

AEC/ AWB/ AGC

Support

Auto Focus

Support optional

Adjustable Parameters

Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White

Balance, Exposure

Lens Parameter

CS Mount 5-50mm Varifocal Lens, manual 10X Optical Zoom;

Optional Lenses:

CS Varifocal lens: 3.6-10mm lens/ 5-50mm lens

CS Manual Focus lens: 8mm/12mm/16mm/25mm/35mm/50mm lens

Power Supply& Connector

USB Type-C Power Supply, Type-C

Power Voltage

DC 5V

Power Current

180-260mA

Size

Metal Case, 50.2x50.2x33.5mm

Storage Temperature

-20°C to 85°C

Working Temperature

-10°C to 65°C

USB Cable

1.5m cable with USB3.0 Type-C port

Operating System Support

Win10/Win11 etc;

Linux with UVC;

MAC-OSX10.4.8 or later;

Android5.x or above
