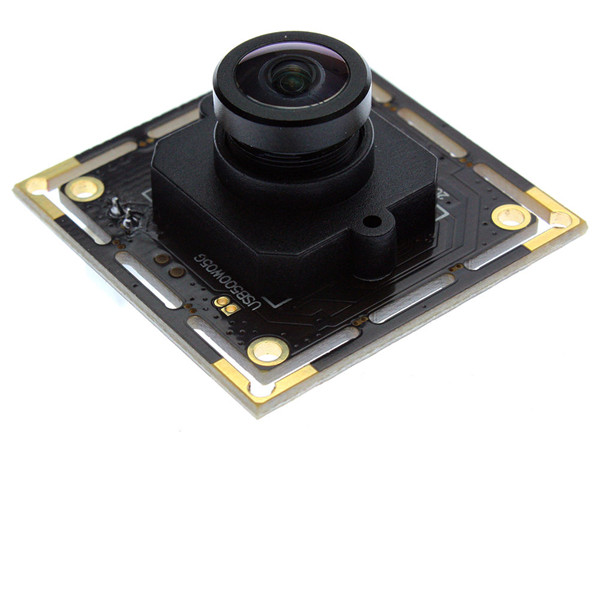

MI5100 5MP USB Camera Module USB2.0 Aptina 1/2.5inch Color CMOS Sensor 100Degree Lens

MI5100 5MP USB Camera Module USB2.0 Aptina 1/2.5inch Color CMOS Sensor 100Degree Lens

  • Model: ELP-USB500W05G-FD100
Add to Cart:

Add you Tags
Details
Download

    MI5100 5MP USB Camera Module USB2.0 Aptina 1/2.5inch Color CMOS Sensor 100Degree Lens

    Main Specifications



    Model

    ELP-USB500W05G-FD100

    Sensor

    Aptina MI5100

    Lens Size

    1/2.5 inch(4:3)

    Pixel Size

    2.2um

    image area

    5.7mm x 4.28mm

    Max. Resolution

    2592(H) X 1944(V)

    Compression format

    MJPEG  / YUV2(YUYV)

    Resolution & frame

    2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG

    1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG

    1920x1080 @ 30fps MJPEG / 1280x720  @ 30fps MJPEG

    800x600   @ 30fps MJPEG / 640x480   @ 30fps MJPEG

    S/N Ratio

    38dB

    Dynamic Range

    70dB

    Sensitivity

    1.4V/lux-sec@550nm

    Mini illumination

    0.1lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    OTG protocol

    USB2.0 OTG

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Button camera

    Support

    Adjustable parameters

    Brightness,  Contrast, Saturation, Hue, Sharpness, Gamma,
    Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    Size:  1/2.5,  Iris:  F2.4,  Focus:  3mm,  FOV(D):  100 Degree

    LED board control interface

    Support  2P-1.25mm socket

    LED board power connector

    Support  2P-2.0mm socket

    Power supply

    USB BUS POWER  4P-2.0mm socket

    Operating Voltage

    DC5V

    Working current

    150Ma~200Ma

    Working temperature

    -10~70℃

    Storage temperature

    -20~85℃

    Board size

    38X38mm(compatible 32X32mm)

    Operating system request

    WinXP/Vista/Win7/Win8

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Wince with UVC

    Android 4.0 or above with UVC
