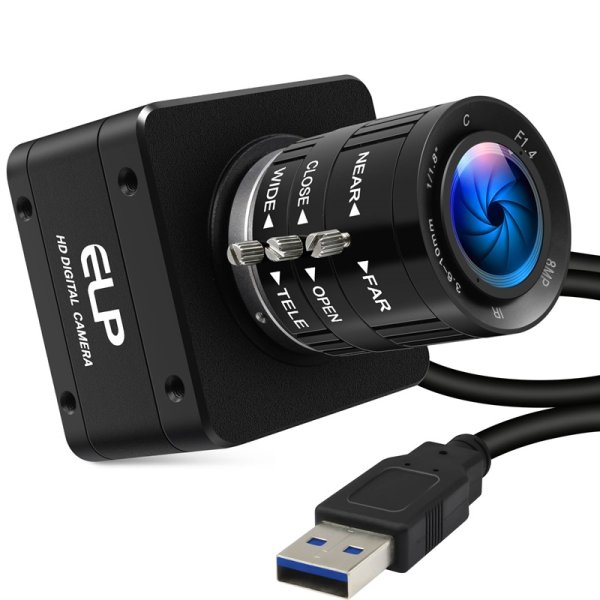

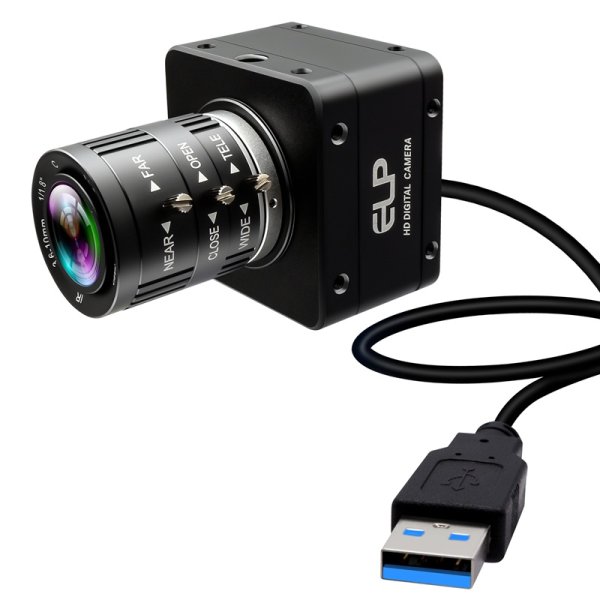

ELP 5MP 60fps Global Shutter USB3.0 Camera OG05B10 Sensor with CS 3.6-10mm lens 3X Optical Zoom

Model: ELP-U3GS05B10C-IB3610

Add you Tags

Product 1/6

Details

Download

Why Global Shutter Camera?

A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.

Key Features:

* Global Shutter and Excellent Sensor Performance: Features a 1/2.5'' OmniVision OG05B10 sensor

* High Speed 5MP @60FPS: Delivers stunning 2592x1944 MJPEG 60fps/ YUY2 35fps, 2048x1536 MJPEG 60fps/ YUY2 50fps, 1920x1080 MJPEG 60fps/ YUY2 60fps

* USB3.0 Output & Type C Interface: Equipped with Type C interfaces and USB3.0 output, improving the high speed to make sure you will not have issues with dropped frames. (The 20-Pin connector interface is option)

* Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi.

Specifications:

Model	ELP-U3GS05B10C-IB3610 (CS 3.6-10mm lens, 3X Optical Zoom)
Lens Options	Varifocal CS Lens: ELP-U3GS05B10C-IB3610 (CS 3.6-10mm lens, 3X Optical Zoom) ELP-U3GS05B10C-IB2812 (CS 2.8-12mm lens, 4X Optical Zoom) ELP-U3GS05B10C-IB550Y (CS 5-50mm lens, 10X Optical Zoom) Manual Focus CS Lens: ELP-U3GS05B10C-IB21 (CS 2.1mm lens) ELP-U3GS05B10C-IB205 (CS 2.5mm lens) ELP-U3GS05B10C-IB4 (CS 4mm lens) ELP-U3GS05B10C-IB6 (CS 6mm lens) ELP-U3GS05B10C-IB8 (CS 8mm lens)
Sensor	OmniVision OG05B10 (1/2.5”) Global Shutter
Max Resolution	2592 (H) *1944 (V)
Sensor Size	1/2.5 inch (4:3)
Image Array Area	5737μm x4312μm
Pixel Size	2.2μm x 2.2μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate Under USB 3.0	2592x1944 MJPEG 60fps/ YUY2 35fps 2560x1440 MJPEG 60fps/ YUY2 35fps 2048x1536 MJPEG 60fps/ YUY2 50fps 1600x1200 MJPEG 60fps/ YUY2 60fps 1920x1080 MJPEG 60fps/ YUY2 60fps 1280x960 MJPEG 60fps/ YUY2 60fps 1280x720 MJPEG 60fps/ YUY2 60fps 640x480 MJPEG 60fps/ YUY2 60fps 512x512 MJPEG 60fps/ YUY2 60fps
Resolution & Frame rate Under USB 2.0	2592x1944 MJPEG 60fps/ YUY2 1fps 2560x1440 MJPEG 60fps/ YUY2 1fps 2048x1536 MJPEG 60fps/ YUY2 1fps 1600x1200 MJPEG 60fps/ YUY2 1fps 1920x1080 MJPEG 60fps/ YUY2 1fps 1280x960 MJPEG 60fps/ YUY2 1fps 1280x720 MJPEG 60fps/ YUY2 1fps 640x480 MJPEG 60fps/ YUY2 30fps 512x512 MJPEG 60fps/ YUY2 10fps
Surface Mount Technology	SMT
Interface & Connector	USB 3.0 Type C Port (USB 3.0 20-Pin Connector optional)
Focus	Fixed		Central Definition			1000LW/PH (Center)
S/N Ratio	38dB		Dynamic Range			72dB
Sensitivity	1.4V/lux-sec@550nm		Min Illumination			0.1lux
Shutter	Global Shutter		Interface			USB 3.0 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	Varifocal CS 3.6-10mm lens, manual 3X optical zoom; Optional Lenses: CS Varifocal lens: 2.8-12mm lens/ 5-50mm lens CS Manual Focus lens: 2.1mm/ 2.5mm/ 4mm/ 6mm/ 8mm lens
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB Type-C Power Supply
Operating Voltage	DC 5V	Working Current		155mA- 195mA
Dimension	50.2mm x 50.2mm x 33.5mm
Storage Temperature	-20°C to 80°C	Working Temperature			-10°C to 70°C
USB Cable	1.5M (2M/3M/5M ... Optional )
Operating System Request	Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
