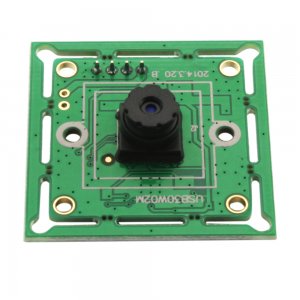

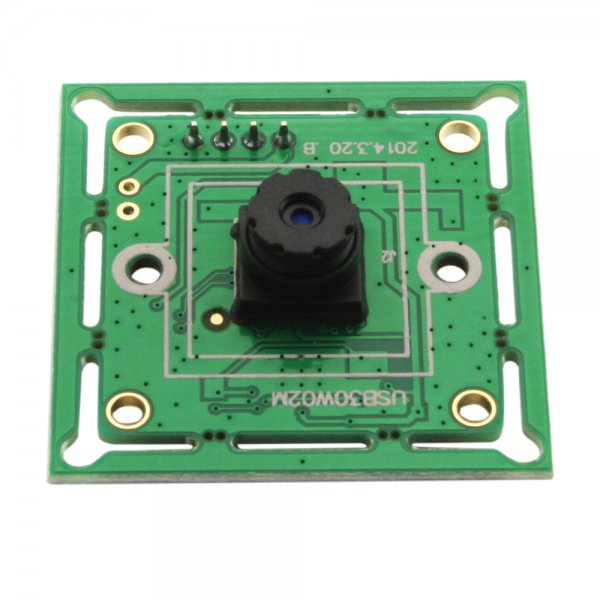

ELP 0.3megapixel high speed 640x480 Mjpeg 60fps 32x32mm/26x26mm mini usb camera ELP-USB30W02M-MHV45

Model: ELP-USB30W02M-MHV45

Add you Tags

Product 1/5

Return to the Product List

Details

Download

Features:

*640x480 VGA resolution 0.3mp mini USB Camera module
*Camera module with 1/4" color CMOS OV7725 sensor

*USB web camera with 45 degree mini size M7 lens
*UVC usb camera, Suport YUY and MJPEG format
*32x32mm/26x26mm mini micro usb camera for embedded applications
*Free driver plug and play camera module for UVC system
*High speed usb camera– deliver 60 fps in VGA
*USB webcam with standard 1m cable (2m, 3m, 5m ... optional)
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera USB with UVC

Specifications:

Model	ELP-USB30W02M-MHV45(45degree lens) Optional Model: ELP-USB30W02M-MHV100(100degree lens) ELP-USB30W02M-MHV120(120degree lens)
Sensor	OV7725
Lens Size	1/4 inch
Pixel Size	6.0um X 6.0um
image area	3984 µm x 2952 µm
Max. Resolution	640(H)X480(V)
Compression format	MJPEG / YUV2(YUYV)
Resolution & frame	640X480 MJPEG@ 60fps YUY2@ 30fps/ 480X480 MJPEG@ 30fps YUY2@ 30fps 450X450 MJPEG@30fps YUY2@ 30fps/ 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps/ 240X240 MJPEG@ 30fps YUY2@ 30fps
USB Protocol	USB2.0 HS/FS USB1.1/USB1.0
S/N Ratio	50dB
Dynamic Range	60dB
Sensitivity	3.8V/lux-sec@550nm
Mini illumination	0. 2lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	Standard 45 degree M7 lens, optional FOV(D)100 /120 Degree
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC5V
Operating Voltage	110mA~160mA
Working current	-10~70℃
