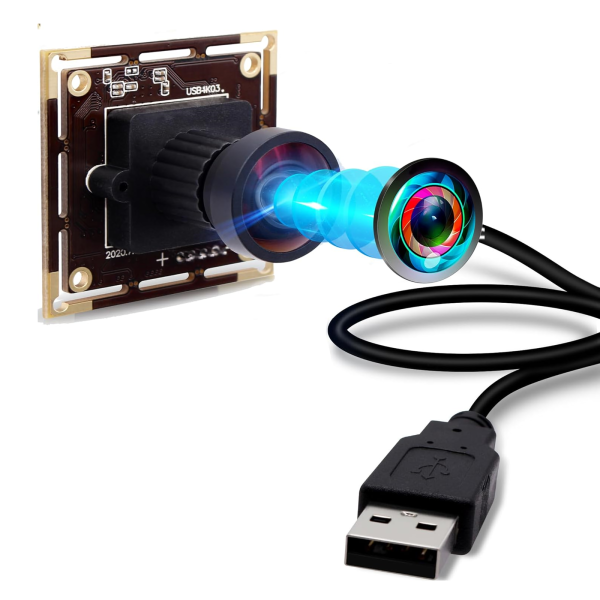

ELP 4K USB Camera Module 3840*2160 30fps IMX415 No Distortion lens 120 Degree Webcam

Model: ELP-USB4K03-H120

Add you Tags

Product 3/8

Details

Download

Features:

* 4K 3840*2160 High Resolution USB Camera Module
* 1/2.5”Sony IMX415 sensor for high quality image
* With HD 120 degree low distortion M12 lens
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 38x38/32x32mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model NO.:	ELP-USB4K03-H120
Other lens options	M12 Normal Lens: ELP-USB4K03-L36 (3.6mm lens, HFOV 84 Degree) ELP-USB4K03-L21 (2.1mm, HFOV 113 Degree) ELP-USB4K03-L28 (2.8mm, HFOV 115 Degree) ELP-USB4K03-L60 (6mm, HFOV 55 Degree) ELP-USB4K03-L80 (8mm, HFOV 43 Degree) ELP-USB4K03-L12 (12mm, HFOV 24 Degree) M12 No Distortion Lens: ELP- USB4K03-V100 (HFOV 83 Degree) ELP- USB4K03-LC1100 (HFOV 66 Degree) ELP- USB4K03-H100 (HFOV 98 Degree) ELP- USB4K03-H110 (HFOV 111 Degree) ELP- USB4K03-H120 (HFOV 124 Degree) M12 Fisheye Lens: ELP-USB4K03-L170 (HFOV 150 degree) ELP-USB4K03-L180 (HFOV 198 degree)
Image Sensor	SONY IMX415 (1/2.8” )
Max. Resolution	3840(H) *2160 (V)
Pixel Size	1.45µmx1.45µm
Compression format	MJPEG / YUY2（YUYV）
Resolution & frame	3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center definition	1000LW/PH (Center)
S/N Ratio	30dB
Sensitivity	0.65V/lux-sec@550nm
Minimum illumination	0.2lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Auto Focus	Support
Adjustable parameters	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure
Lens Parameter	M12 Low Distortion lens, HFOV about 125 degree, VFOV 85 degree; IR filter: 650±10nm
Power supply& connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC 5V
Power Current	200mA
Board Size	3838/ 3232MM
Storage Temperature	-20°C to 70°C
Work Temperature	0°C to 60°C
USB Cable	1M(2M/3M/5M optional)
Operating System support	Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
