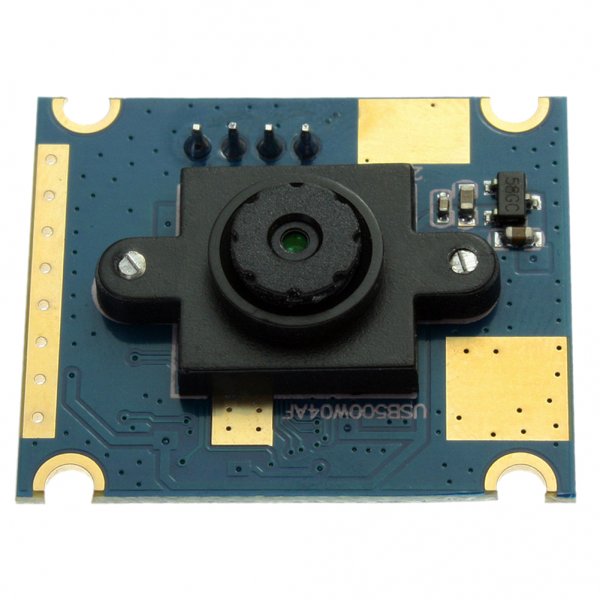

    ELP 5 megapixel CMOS OV5640 sensor 30x25mm mini USB Camera module ELP-USB500W04AF-L60



    Features:

    *5MP HD USB Camera Board with 1/4" OV5640 sensor
    *UP to 2592 (H) x 1944 (V) resolution
    *High speed USB 2.0 interface for high resolution PC camera interface.
    *Super small outline and thin profile for embedded applications. 30X25mm
    *Low power consumption – ideal for portable equipment.
    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
    *Camera with UVC.

    Specifications:



    Model

    ELP-USB500W04AF-L60

    Item

    5MP mini Micro USB camera module

    Resolution & FPS

    2592x1944@ 15fps MJPEG                                     2048x1536@ 15fps MJPEG
    1600x1200@ 15fps MJPEG                                    1920x1080@ 15fps MJPEG
    1280x1024@15fps MJPEG                                     1280x720@ 30fps MJPEG
    1024 x 768@ 30fps MJPEG                                     800 x 600@ 30fps MJPEG
    640x480@ 30fps MJPEG                                         320x240@ 30fps MJPEG

    Sensor

    Omnivision OV5640

    Connecting Port Type

    USB2.0 High speed

    Sensor Size

    1/4 inch

    Support free driver

     USB Video Class(UVC)

    Pixel Size

    1.4µm x1.4µm

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Max. Resolution

    2592 (H) *1944 (V)

    AEB  AEC

     Support

    Picture format

    MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens Parameter

    Fixed lens
    FOV: 65Degree
    IR Filter: 650±10nm

    Adjustable parameters

     Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 1m / Optional 2m,3m,5m

    work temperature

     DEGREES(-20~70)

    Board Size

    30x25mm

    Certifications

    FCC and CE

    Mini illumination

    0.1lux

    Power Supply

     DC 5V

    USB Protocol

     USB2.0 HS/FS

    Operating Voltage

    150mW- 200mW

    OTG protocol

    USB2.0 OTG

    Special function

    Mini Size, fixed lens

    Night vision

     without night vision

    LED board power connector

    Support, 2P-2.0mm socket

    Support OS

    WinXP/Vista/WIN7/WIN8 /
    Linux with UVC
     Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above
