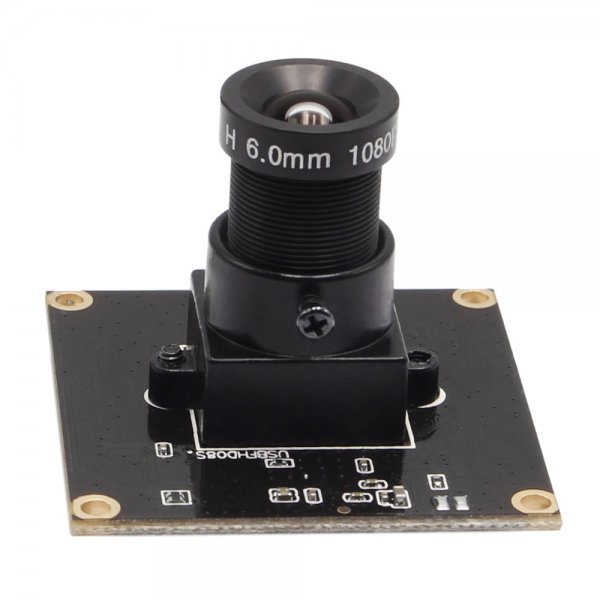

2MP high speed USB2.0 camera 60fps, 120fps, 260fps USB webcam with 6mm lens for machine vision

2MP high speed USB2.0 camera 60fps, 120fps, 260fps USB webcam with 6mm lens for machine vision

  • Model: ELP-USBFHD08S-L60
Add to Cart:

Add you Tags
Details
Download

    Features:

    * Full HD 1080P free driver USB2.0 high speed 60, 120, 260fps usb camera

    * USB Camera with 1/3" OV4689 CMOS Sensor

    ​* High speed  Mjpeg 260fps @640x360,  120fps @1280x720,  60fps @1920x1080   USB camera module.

    * Mini micro USB webcam, with standard 1m cable (2m, 3m, 5m optional).

    * USB with camera for  WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

    * Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.



    Specification:

    Model

    ELP-USBFHD08S-L60  (6mm)

    Optional Model

    ELP-USBFHD08S-L21 (2.1mm)                       ELP-USBFHD08S-L28 (2.8mm)
    ELP-USBFHD08S-L29  (2.9mm)                      ELP-USBFHD08S-L36 (3.6mm)
    ELP-USBFHD08S-L80 (8mm)                          ELP-USBFHD08S-L12 (12mm)
    ELP-USBFHD08S-L170 (fisheye lens, HFOV about 120 degree)
    ELP-USBFHD08S-L180 (fisheye lens, HFOV >180 degree)
    ELP-USBFHD08S-LC1100 (No distortion Lens)
    All above models, specifications are same, just lens different

    Resolution & FPS

    1920X1080 MJPEG@ 60fps
    1280X720 MJPEG@ 120fps
    640X360 MJPEG@ 260fps

    Sensor

    OV4689 Sensor

    Connecting Port Type

    USB2.0  High speed

    Sensor Size

    1/3 inch

    Support free driver

    USB Video Class(UVC)

    Pixel Size

    2.0μm x 2.0μm

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Mini illumination

    0.1Lux

    AEC

    Support

    Max. Resolution

    FULL HD 1920(H)x1080(V)pixels

    AEB

    Support

    Picture format

    MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens Parameter

    6mm (2.1mm/ 2.8mm/2.9mm, 3.6mm/ 8mm/ 12mm/ No distortion /Fisheye 170 Degree,180Degree optional)

    Adjustable parameters

     Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 1m/ Optional 2m,3m,5m

    work temperature

    DEGREES(-20~70)

    Board Size/
    Weight

    38*38mm

    Certifications

    FCC and CE

    Power supply

    USB BUS POWER

    Power Supply

    DC 5V

    USB Protocol

    USB2.0 HS/FS

    Operating Voltage

    150mA~185mA

    OTG protocol

    USB2.0 OTG

    Special function

    High FPS

    Night vision

    Without (Do not advice Connect IR LED Board)

    LED board power connector

    Support, 2P-2.0mm socket

    Support OS

    WinXP/Vista/WIN7/WIN8 / WIN9/WIN10/WIN11 etc.
    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above
