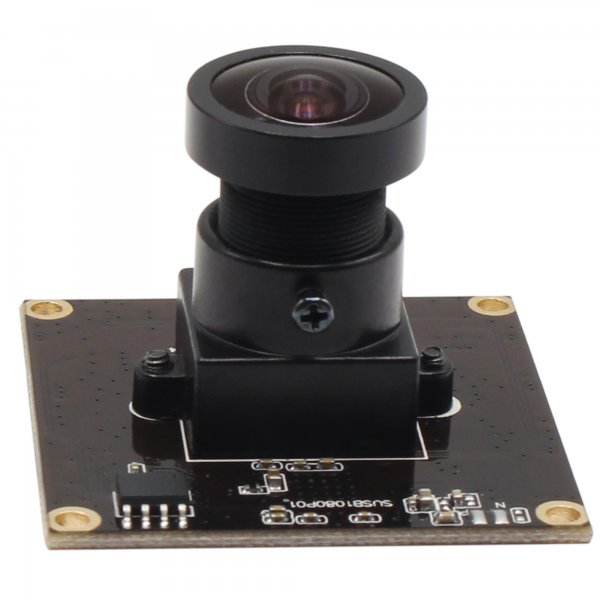

ELP 1080P 50fps USB 3.0 Camera MJPEG YUY2 Sony IMX291 Industrial Camera Module with 2.9mm Lens

Model: ELP-SUSB1080P01-L29

Add you Tags

Product 2/10

Return to the Product List

Details

Download

Features:

* 1080P USB3.0 high speed usb camera module

* 1/2.8” Sony IMX291 sensor for high quality image
* High frame rate-1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
* With HD 2.9mm M12 wide angle lens, HFOV about 116 degree
* MJPEG/YUY2 dual video format optional
* Mini size 38*38MM embedded application
* High speed USB 3.0 plug&play port - suitable for any PC with USB 3.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model	ELP-SUSB1080P01-L29
Other Lens Optional	M12 Mount Lens: ELP-SUSB1080P01-L29 (2.9mm lens, HFOV 116 degree) ELP-SUSB1080P01-L21 (2.1mm lens, HFOV 110 degree) ELP-SUSB1080P01-L28 (2.8mm lens, HFOV 115 degree) ELP-SUSB1080P01-L36 (3.6mm lens, HFOV 83 degree) ELP-SUSB1080P01-L60 (6mm lens, HFOV 54 degree) ELP-SUSB1080P01-L80 (8mm lens, HFOV 42 degree) ELP-SUSB1080P01-L12 (12mm lens, HFOV 24 degree) ELP-SUSB1080P01-L16 (16mm lens, HFOV 20 degree) ELP-SUSB1080P01-L25 (25mm lens, HFOV 11 degree) M12 No Distortion Lens: ELP-SUSB1080P01-LC1100 (HFOV 66 degree) ELP-SUSB1080P01-V100 (HFOV 82 degree) ELP-SUSB1080P01-L297 (HFOV 90 degree) ELP-SUSB1080P01-H100 (HFOV 97 degree) ELP-SUSB1080P01-H110 (HFOV 110 degree) ELP-SUSB1080P01-H120 (HFOV 123 degree) M12 Fisheye Lens: ELP-SUSB1080P01-L170 (HFOV 150 degree) ELP-SUSB1080P01-L180 (HFOV 195 degree)
Sensor	IMX291
Lens Size	1/2.8 inch
Pixel Size	2.9µm X 2.9µm
Max. Resolution	1920(H)X1080(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
S/N Ratio	40dB
Dynamic Range	65dB
Sensitivity	1900mV/lux-sec@550nm
Mini illumination	0. 01lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB3.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard M12 monut 2.9mm lens, HFOV about 116 degree/ VFOV 64 degree/ DFOV 135 degree (2.1/2.8/3.6/6/8/12mm/ no distortion/ fisheye lens optional)
Power supply	USB BUS POWER
Operating Voltage	DC5V
Working current	170mA~210mA
Working temperature	0～70℃
Board size /Weight	38*38mm
Cable	Standard 1M （2/3m optional)
Operating system request	Win8 and above Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
