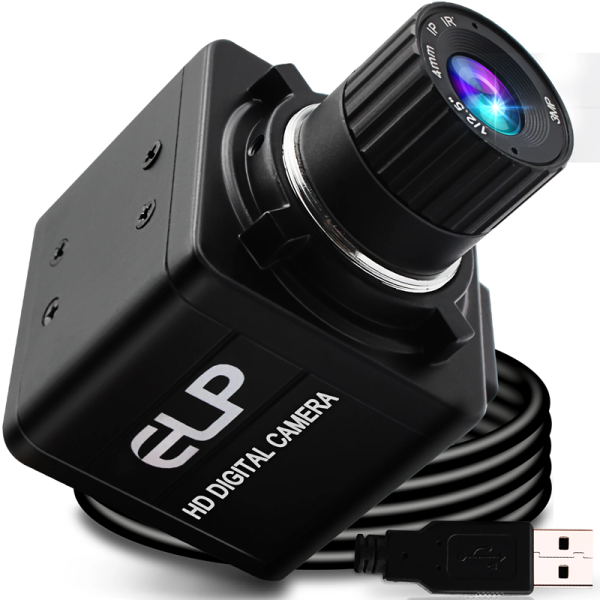

ELP Full HD 1080P USB Camera OV2710 Color Sensor VGA 100fps with CS Mount 4mm Manual Focus Lens

Model: ELP-USBFHD01M-MF40

Add you Tags

Product 9/14

Return to the Product List

Details

Download

Features:

* High Quality Sensor: 1/2.7" CMOS OV2710 Sensor

* Full HD 1080P: Max Resolution 1920x1080

* High Speed, High Frame Rate:1920x1080 MJPEG 30FPS, 1280x720 MJPEG 60FPS, 640x480 MJPEG 100FPS

* Manual CS Mount 4mmLens: the focus is adjustable based on different distance; option for 6mm/8mm lens

* Compact Size: metal case, 50x50x45mm

* Default with 3m USB Cable: other length cable optional (1m/2m/5m/0.3m/0.5m...optional)

* UVC Compliance: free driver, Plug & Play

* OTG support: can connect android tablet, smartphone... via OTG cable

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera...

Specifications:

Model	ELP-USBFHD01M-MF40 (CS 4mm Lens) other lens options: ELP-USBFHD01M-MF60 (CS 6mm Lens) ELP-USBFHD01M-MF80 (CS 8mm Lens)
Sensor	1/2.7 inches OV2710
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 6fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 100fps YUY2 30fps
Mini Illumination	0.05 Lux
Shutter Type	Electronic rolling shutter / Frame exposure
Sensitivity	3.7V/lux-sec@550nm
Connecting Port type	USB2.0 High Speed (Support USB2.0 HS/FS, USB2.0 OTG)
OTG Protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class (UVC)
AEC, AWB, AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	Manual Focus CS Mount 4mm Lens; option lens for 6mm/8mm lens
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working current	120mA~220mA
Working Temperature	-10～60℃
Storage Temperature	-20～75℃
Size	Camera module: 38x38mm (Remove the edge, get 32x32mm) Metal Case: 50x50x45mm
Cable	Standard 3m (optional 0.3m/0.5m/1m/2m/5m...)
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
