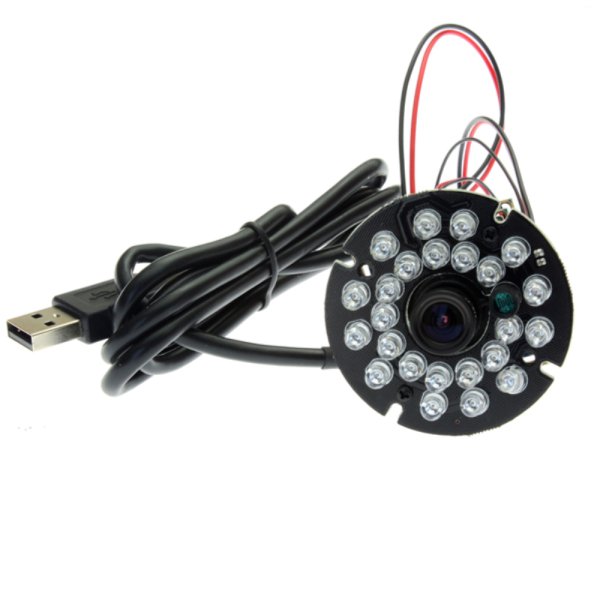

ELP 2MP Sony IMX323 free driver IR night vision USB Camera Module Full HD 1080P with 3.6mm lens

ELP 2MP Sony IMX323 free driver IR night vision USB Camera Module Full HD 1080P with 3.6mm lens

  • Model: ELP-USBFHD06H-RL36
Add to Cart:

Add you Tags
Details
Download

    Features:

    1. 1/2.9 inches Sony IMX323 Sensor
    2. Compression: H.264/Mjpeg/YUY2 (YUYV)
    3. Max Resolution: 1920x1080; Framerate: 1920x1080 H.264/Mjpeg 30fps
    4. Lens: HD 3.6mm lens (Many other lens optional)
    5. Standard with 1m cable (2m/3m/5m/0.3m/0.5m...optional)
    6. Mini Ilumination: 0 Lux (With night vision), with 24PCS IR LEDs, IR range about 15m.
    7. With microphone
    8. UVC, free driver, Plug & Play.
    9. Support Windows, Linux, Android, Mac OS, and many software compatible.


    Specifications:

    Model ELP-USBFHD06H-RL36 (3.6mm)
    Optional Models ELP-USBFHD06H-RL21 (2.1mm)                    ELP-USBFHD06H-RL28 (2.8mm)
    ELP-USBFHD06H-RL60 (6mm)                       ELP-USBFHD06H-RL80 (8mm)
    ELP-USBFHD06H-RL12 (12mm)
    Sensor Sony IMX323
    Lens Size 1/2.9 inches
    Pixel Size 12.8X11.6 mm
    image area 2000(H)X1121(V) approx. 2.24 M pixels
    Max. Resolution 1080P
    Compression format H.264 /MJPEG / YUV2(YUYV)
    Resolution & frame H264:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/
            800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
    MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps/
            640X480@30fps/800X600@ 30fps/ 1280X720@ 30fps/1920X1080@ 30fps
    YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/
           800X600@ 15 fps
    S/N Ratio 42dB
    Dynamic Range 86dB
    Sensitivity 5.0V/lux-sec@550nm
    Mini illumination 0 Lux
    Shutter Type Electronic rolling shutter / Frame exposure
    Connecting Port type USB2.0 High Speed
    Free Drive Protocol USB Video Class(UVC)
    Support OTG Protocol USB2.0 OTG
    AEC Support
    AEB Support
    AGC Support
    Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
    Lens Parameter 3.6mm, optional 2.1/2.8/6/8/12mm
    Digital audio   High quality digital MIC, support single, dual channel
    LED 24PCS LEDs (With IR CUT, Control Board)
    LED board power connector Support 2P-2.0mm socket
    Power supply USB BUS POWER 4P-2.0mm socket
    Operating System DC5V
    Operating Voltage 140mA~190mA
    Working current  -10~70℃
    Working temperature  -20~85℃
    Cable Standard 1m (2m/3m/5m/0.3m/0.5m... optional)
    Operating system request WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
    Linux 2.6 or above
    Android 4.0 or above
    Mac OS
