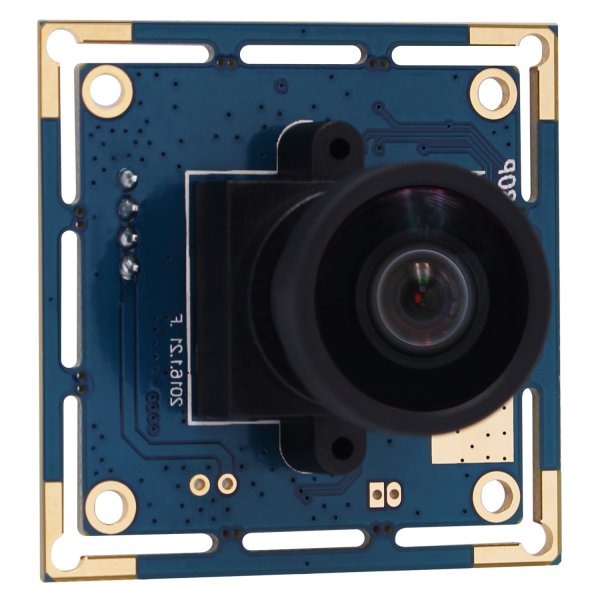

Model

ELP-USBFHD01M-H110

Sensor

1/2.7 inches OV2710

Max. Resolution

FULL HD 1920(H)X1080(V)

Compression Format

MJPEG / YUV2 (YUYV)

Resolution & Frame Rate

1920 (H) x 1080 (V) pixels   MJPEG 30fps      YUY2 6fps

1280 (H) x 1024 (V) pixels   MJPEG 30fps      YUY2 6fps

1280 (H) x 720 (V) pixels     MJPEG 60fps      YUY2 9fps

1024 (H) x 768 (V) pixels     MJPEG 30fps      YUY2 9fps

800 (H) x 600 (V) pixels      MJPEG 60fps      YUY2 21fps

640 (H) x 480 (V) pixels     MJPEG 100fps      YUY2 30fps

Mini Illumination

0.05 Lux

Shutter Type

Electronic rolling shutter / Frame exposure

Sensitivity

3.7V/lux-sec@550nm

Connecting Port type

USB2.0 High Speed (Support USB2.0 HS/FS, USB2.0 OTG)

OTG Protocol

USB2.0 OTG

Free Drive Protocol

USB Video Class (UVC)

AEC, AWB, AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure

Lens Parameter

f= 2.20土5% mm

Macro Distortion lens, HFOV about 113 degree, VFOV about 76 degree

 (Many other lens optional)

Night Vision

Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board

LED board power connector

Support 2P-2.0mm socket

Power Supply

USB BUS POWER  4P-2.0mm socket

Operating Voltage

DC 5V

Working current

120mA~220mA

Working Temperature

 -10～60℃

Storage Temperature

 -20～75℃

Board Size

38x38mm (Remove the edge, get 32x32mm)

Cable

Standard 1m (optional 0.3m/0.5m/2m/3m/5m...)

Operating System Request

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

Optional Models

No/Macro Distortion Lens:

ELP-USBFHD01M-H100 (HFOV 100, VFOV 67)

ELP-USBFHD01M-H110 (HFOV 113, VFOV 76)

ELP-USBFHD01M-H120 (HFOV 125, VFOV 87)

ELP-USBFHD01M-L100 (HFOV 87.5, VFOV 55)

ELP-USBFHD01M-L297 (HFOV 92, VFOV 60)

ELP-USBFHD01M-V100 (HFOV 85, VFOV 53)

ELP-USBFHD01M-LC1100 (HFOV 68, VFOV 41)

Wide Angle Fish-eye Lens:

ELP-USBFHD01M-L170 (HFOV 141, VFOV 77)

ELP-USBFHD01M-L180 (HFOV 180, VFOV 120)

Normal M12 Lens:

ELP-USBFHD01M-L12 (HFOV 25, VFOV 14)

ELP-USBFHD01M-L80 (HFOV 42, VFOV 23)

ELP-USBFHD01M-L60 (HFOV 53, VFOV 30)

ELP-USBFHD01M-L36 (HFOV 85, VFOV 46)

ELP-USBFHD01M-L28 (HFOV 113, VFOV 61)

ELP-USBFHD01M-L21 (HFOV 117, VFOV 60)
