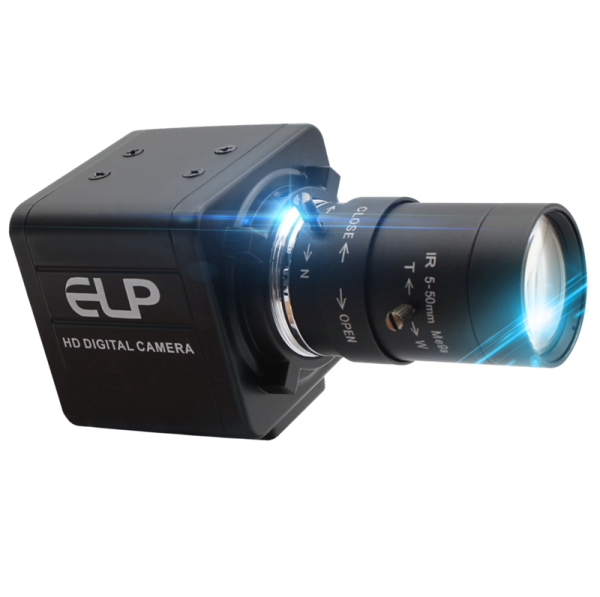

ELP 800P Global Shutter Monochrome USB Camera with Varifocal CS 5-50mm Lens Manual 10X Optical Zoom

ELP 800P Global Shutter Monochrome USB Camera with Varifocal CS 5-50mm Lens Manual 10X Optical Zoom

  • Model: ELP-USBGS800P03-MFV(5-50)
Add to Cart: Units:  100

Add you Tags
Details
Download

    Why Global Shutter Camera?



    A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.




    Features:



    *Sensor: 1/4'' OmniVision OV9281 CMOS Sensor



    *High quality Monochrome/Black&White Image



    *Resolution: up to 1280(H)x 800(V)



    *High Speed/High FPS: 1280x800 @120fps MJPEG / 1280x720 @120fps MJPEG / 640x480 @210fps MJPEG

                                           320x240 @420fps MJPEG / 160x120@ 640fps MJPEG



    *Lens: CS Mount 5-50mm Lens with manaul 10x optical zoom, option for 2.8-12mm lens with 4x optical zoom



    *USB Cable: Support different length cable, standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)



    *UVC: Free driver, Plug & Play



    *Operating Systems: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.



    *Software :Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)



    *OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.





    Specifications:



    Model

    ELP-USBGS800P03-MFV(5-50) (CS 5-50mm lens, 10x optical zoom)



    option lens:

    ELP-USBGS800P03-MFV(2.8-12) (CS 2.8-12mm lens, 4x optical zoom)

    Sensor

    OmniVision OV9281

    Lens Size

    1/4 inch

    Pixel Size

    3 µm x 3 µm

    Max Resolution

    1280(H)x 800(V)

    Default Resolution

    640(H)x 480(V) @ 210fps MJPEG

    Image Format

    MJPEG

    Resolution & Frame rate

    1280x800 @ 120fps MJPEG / 1280x720 @ 120fps MJPEG

    1024x768 @ 120fps MJPEG / 800x600 @ 120fps MJPEG

    640x480 @ 210fps MJPEG/640x400 @ 210fps MJPEG

    320x240 @420fps MJPEG/ 160x120@ 640fps MJPEG

    Surface Mount Technology

    SMT

    Focus

    Manual Focus

    Central Definition

    600LW/ PH (Center)

    S/ N Ratio

    37dB

    Dynamic Range

    70dB

    Sensitivity

    1.4V/lux-sec@550nm

    Min illumination

    0.3 Lux

    Shutter Type

    Global Shutter

    Connecting Port Type

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    AGC

    Support

    Adjustable Parameters

    Brightness, contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure

    Lens Parameter

      CS mount 5-50mm lens, manual 10x optical zoom



       option for 2.8-12mm lens with 4x optical zoom

    LED Board Power Connector

    Support 2P-2.0mm socket

    Power Supply

    USB BUS POWER    4P-2.0mm Socket

    Operating Voltage

    DC 5V

    Working Current

    100mA- 130mA

    Dimension

    Metal Case, 45x50x45mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    0°C to 60°C

    USB Cable

    3M(1M/2M/5M... optional)

    Operating System Request

    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
