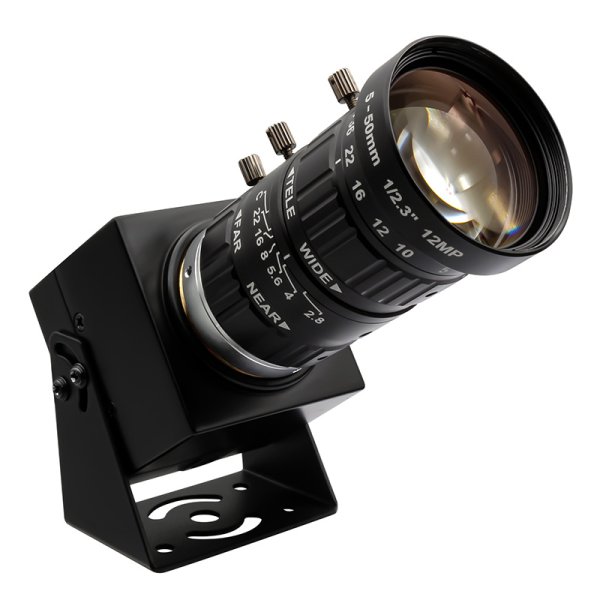

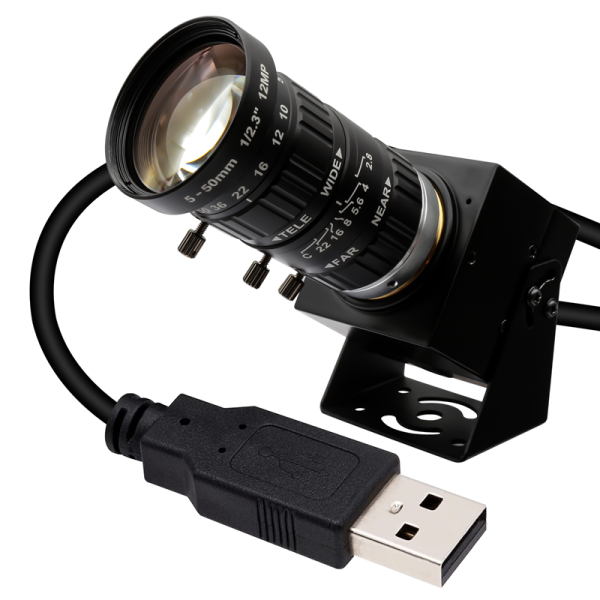

ELP 1080P 2K Starvis Low Light 2MP USB Camera Module with CS 5-50MM Varifocal Lens

Model: ELP-USB1080P03-UFV(5-50B)

Add you Tags

Product 1/14

Return to the Product List

Details

Download

*Sensor: 1/1.8” SmartSens SC2210 Starvis CMOS

*Max Resolution: 1920x1080 MJPEG 30fps/ H.264 30fps

*Video Formats: MJPEG / H.264 / YUY2 (UVC)

*Low Illumination: 0.0001Lux, Super Low Light Performance

*CS Varifocal Lens: CS Mount, Manual Optical Zoom & Focus 5-50mm Lens

*HDR Support: High Dynamic Range, Up to 100dB

* Sturdy metal housing, offers a standard 1/4" threaded hole on the base for using with a tripod

*Standard with 3m cable (1m/2m/5m...optional)

*Free driver, Plug & Play

*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...OTG support

*Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

Model	ELP-USB1080P03-UFV(5-50B)
Other Lens options	M12 No Distortion Lens: ELP-USB1080P03-V6 (HFOV 66 degree) ELP-USB1080P03-LC1100 (HFOV 86 degree) ELP-USB1080P03-V100 (HFOV 101 degree) ELP-USB1080P03-H100 (HFOV 117 degree) M16 Mount Lens: ELP-USB1080P03-F1L28 (2.8mm lens, HFOV 110 degree) ELP-USB1080P03-F1L4 (4mm lens, HFOV 95 degree) ELP-USB1080P03-F1L6 (6mm lens, HFOV 59 degree) M12 S-mount Lens: ELP-USB1080P03-F16L28 (2.8mm lens, HFOV 110 degree) ELP-USB1080P03-F16L4 (4mm lens, HFOV 88 degree) ELP-USB1080P03-F16L6 (6mm lens, HFOV 60 degree) M12 Mount Lens: ELP-USB1080P03-L12 (12mm lens, HFOV 35 degree) ELP-USB1080P03-L16 (16mm lens, HFOV 28 degree) ELP-USB1080P03-L25 (25mm lens, HFOV 16 degree) M12 Fisheye Lens: ELP-USB1080P03-L170 (HFOV 190 degree) CS Mount Varifocal Lens: ELP-USB1080P03-MFV(3.6-10) ( 3.6-10mm lens) ELP-USB1080P03-MFV(5-50B) ( 5-50mm lens) ELP-USB1080P03-UFV(3.6-10) ( 3.6-10mm lens) ELP-USB1080P03-UFV(5-50B) ( 5-50mm lens)
Sensor	1/ 1.8” SmartSens SC2210
Max Resolution	1920(H)*1080(V)
Sensitivity	1.08V/lux-sec
Pixel Size	4.0 µm x 4.0 µm
Video Compression	MJPEG / YUY2(YUYV) / H.264
Resolution & Frame Rate	1920x1080 MJPEG 30fps/ H.264 30fps / YUY2 5fps 1280x720 MJPEG 30fps/ H.264 30fps / YUY2 10fps 1024x576 MJPEG 30fps/ H.264 30fps / YUY2 15fps 960x540 MJPEG 30fps/ H.264 30fps / YUY2 15fps 640x480 MJPEG 30fps/ H.264 30fps / YUY2 30fps 640x360 MJPEG 30fps/ H.264 30fps / YUY2 30fps
Image Processing Time	About 5 seconds after opening the preview software
Central Definition	1000LW/PH(Center)
S/N Ratio	UP to 100dB
Min illumination	Minimum to 0.0001Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	CS Mount 5-50mm Manual Varifocal Lens (M12 lens: 12mm, 16mm, 25mm lens; M16 lens: 2.8mm, 4mm, 6mm Lens; M12 S-mount lens: 2.8mm, 4mm, 6mm lens; no distortion lens; fisheye lens; CS Mount: 3.6-10mm optional)
Power Supply & Connector	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC 5V
Working Current	150-180mA
Board Size	38x38mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	3M(1M/2M/5M optional)
Operating System Request	Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above
