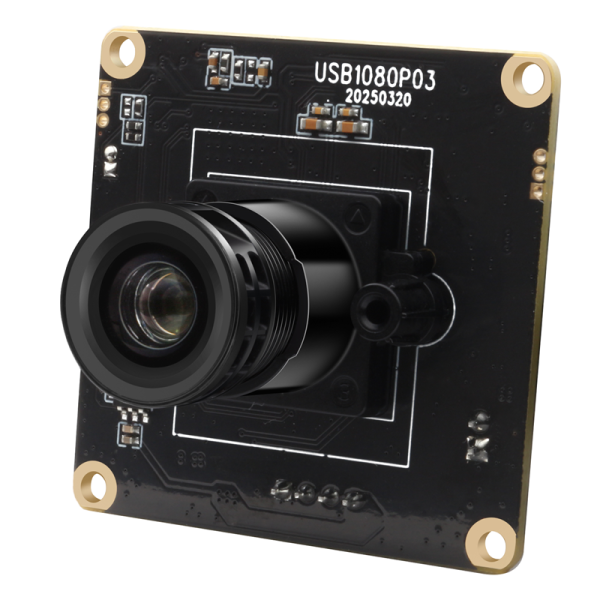

ELP 2MP 2K Starvis Low Light 1080P USB Camera Module with M12 S-mount 6mm Lens

Model: ELP-USB1080P03-F16L6

Add you Tags

Product 9/13

Return to the Product List

Details

Download

Features:

*Sensor: 1/1.8” SmartSens SC2210 Starvis CMOS

*Max Resolution: 1920x1080 MJPEG 30fps/ H.264 30fps

*Video Formats: MJPEG / H.264 / YUY2 (UVC)

*Low Illumination: 0.0001Lux, Super Low Light Performance

*HD M12 S-mount 6mm lens, HFOV about 60 Degree

*HDR Support: High Dynamic Range, Up to 100dB

*38x38mm, small size, easy to embedded in kinds of smart machines.

*Standard with 1m cable (2m/3m/5m...optional)

*Free driver, Plug & Play

*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...OTG support

*Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

Specifications:

Model	ELP-USB1080P03-F16L6
Other Lens options	M12 S-mount Lens: ELP-USB1080P03-F16L28 (2.8mm lens, HFOV 110 degree) ELP-USB1080P03-F16L4 (4mm lens, HFOV 88 degree) ELP-USB1080P03-F16L6 (6mm lens, HFOV 60 degree) M16 Mount Lens: ELP-USB1080P03-F1L28 (2.8mm lens, HFOV 110 degree) ELP-USB1080P03-F1L4 (4mm lens, HFOV 95 degree) ELP-USB1080P03-F1L6 (6mm lens, HFOV 59 degree) M12 Mount Lens: ELP-USB1080P03-L12 (12mm lens, HFOV 35 degree) ELP-USB1080P03-L16 (16mm lens, HFOV 28 degree) ELP-USB1080P03-L25 (25mm lens, HFOV 16 degree) M12 No Distortion Lens: ELP-USB1080P03-V6 (HFOV 66 degree) ELP-USB1080P03-LC1100 (HFOV 86 degree) ELP-USB1080P03-V100 (HFOV 101 degree) ELP-USB1080P03-H100 (HFOV 117 degree) M12 Fisheye Lens: ELP-USB1080P03-L170 (HFOV 190 degree)
Sensor	1/ 1.8” SmartSens SC2210
Max Resolution	1920(H)*1080(V)
Sensitivity	1.08V/lux-sec
Pixel Size	4.0 µm x 4.0 µm
Video Compression	MJPEG / YUY2(YUYV) / H.264
Resolution & Frame Rate	1920x1080 MJPEG 30fps/ H.264 30fps / YUY2 5fps 1280x720 MJPEG 30fps/ H.264 30fps / YUY2 10fps 1024x576 MJPEG 30fps/ H.264 30fps / YUY2 15fps 960x540 MJPEG 30fps/ H.264 30fps / YUY2 15fps 640x480 MJPEG 30fps/ H.264 30fps / YUY2 30fps 640x360 MJPEG 30fps/ H.264 30fps / YUY2 30fps
Image Processing Time	About 5 seconds after opening the preview software
Central Definition	1000LW/PH(Center)
S/N Ratio	UP to 100dB
Min illumination	Minimum to 0.0001Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	M12 S-mount 6mm lens, HFOV about 60 degree, VFOV about 35 degree; (M12 S-mount lens: 2.8mm, 4mm lens; M12 lens: 12mm, 16mm, 25mm lens; M16 lens: 2.8mm, 4mm, 6mm Lens; no distortion lens; fisheye lens; CS Mount: 3.6-10mm, 5-50mm Lens optional)
Power Supply & Connector	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC 5V
Working Current	150-180mA
Dimension	38x38mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	1M(2M/3M/5M optional)
Operating System Request	Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above
