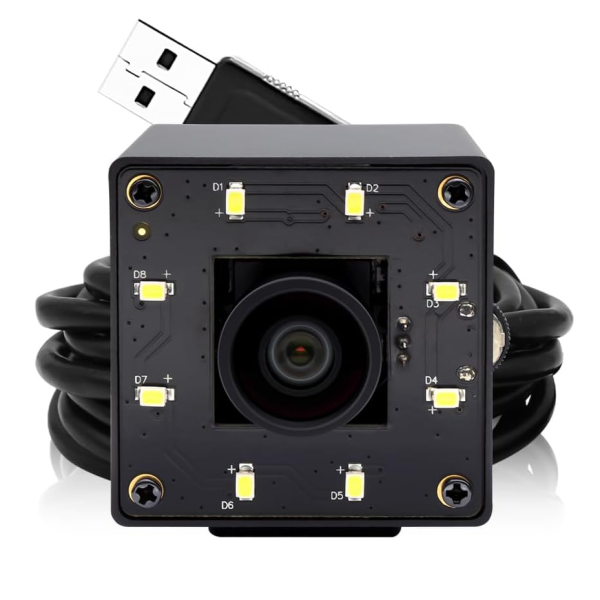

5MP IMX335 Sensor 30fps USB Camera with White LED for Night Vision Color Image No Distortion Lens

5MP IMX335 Sensor 30fps USB Camera with White LED for Night Vision Color Image No Distortion Lens

  • Model: ELP-USB500W07-KH100W
Add to Cart: Units:  100

Add you Tags
Details
Download

    Features:



    *5MP HD USB Camera with 1/2.8” IMX335 sensor



    *High resolution/Rate 2592x1944 MJPEG@30fps



    *With 8pcs White LEDs for dark or night vision,



    *Lens: M12 mount No Distortion lens, many other lens for optional



    *High speed USB 2.0 interface for high resolution PC camera interface


    *Super small outline and thin profile for embedded applications. Metal case 42x42mm


    *Low power consumption – ideal for portable equipment


    *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above


    *Camera with UVC





    Specifications:



    Model

    ELP-USB500W07-KH100W

    Sensor

    SONY IMX335 (1/2.8” )

    Max Resolution

    2592(H) *1944 (V)

    Pixel Size

    2.0µm x2.0µm

    Image Area

    5800µmx4750µm

    Picture Format

    MJPEG / YUY2 (YUYV)

    Resolution & Frame Rate

    2592x1944 MJPEG 30fps/ YUY2 1fps

    2048x1536 MJPEG 30fps/ YUY2 3fps

    1920x1080 MJPEG 30fps/ YUY2 3fps

    1600x1200 MJPEG 30fps/ YUY2 5fps

    1280x960 MJPEG 30fps/ YUY2 5fps

    1280x720 MJPEG 30fps / YUY2 5fps

    1024 x 768 MJPEG 30fps/ YUY2 5fps

    800 x 600 MJPEG 30fps / YUY2 20fps

    640x480 MJPEG 30fps / YUY2 30fps

    320x240 MJPEG 30fps / YUY2 30fps

    Center Definition

    1000LW/ PH (Center)

    S/ N (Signal Noise Ratio)

    30dB

    Sensitivity

    0.65V/lux-sec@550nm

    Min. illumination

    0.2 Lux

    Shutter

    Electronic rolling shutter / Frame exposure

    Interface

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

    Lens

    M12 mount no distortion lens; HFOV about 93 degree/ VFOV 76 degree;



    optional for 3.6/2.1/2.8/2.9/6/8/12/16/25mm lens, No distortion lens, Fisheye lens

    Power Supply & Connector

    USB BUS POWER    4P-2.0mm socket

    Power

    DC 5V

    Current

    210mA

    Size

    Board size: 38mm × 38mm (compatible 32X32mm)

    Case size: 42mm × 42mm

    Storage Temperature

    -20°C to 75°C

    Working Temperature

    - 10°C to 65°C

    USB Cable

    3M(1M/2M/5M Optional)

    Operating System

    Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC

    Optional Models

    With no distortion lens:

    ELP-USB500W07-KV100W (HFOV about 79 degree)

    ELP-USB500W07-KLC1100W (HFOV about 62 degree)

    ELP-USB500W07-KH100W (HFOV about 93 degree)

    ELP-USB500W07-KH110W (HFOV about 107 degree)

    ELP-USB500W07-KH120W (HFOV about 118 degree)



    With M12 lens:

    ELP-USB500W07-KL21W (2.1mm, HFOV 101 degree)

    ELP-USB500W07-KL361W (3.6mm, HFOV 81 degree)

    ELP-USB500W07-KL281W (2.8mm, HFOV 102 degree)

    ELP-USB500W07-KL601W (6mm, HFOV 53 degree)

    ELP-USB500W07-KL80W (8mm, HFOV 39 degree)

    ELP-USB500W07-KL12W (12mm, HFOV 23 degree)

    ELP-USB500W07-KL16W (16mm, HFOV 18 degree)

    ELP-USB500W07-KL25W (25mm, HFOV 10.5 degree)



    With Fisheye Lens:

    ELP-USB500W07-KL170W (HFOV about 138 degree)

    ELP-USB500W07-KL185W (HFOV anout 200 degree)
