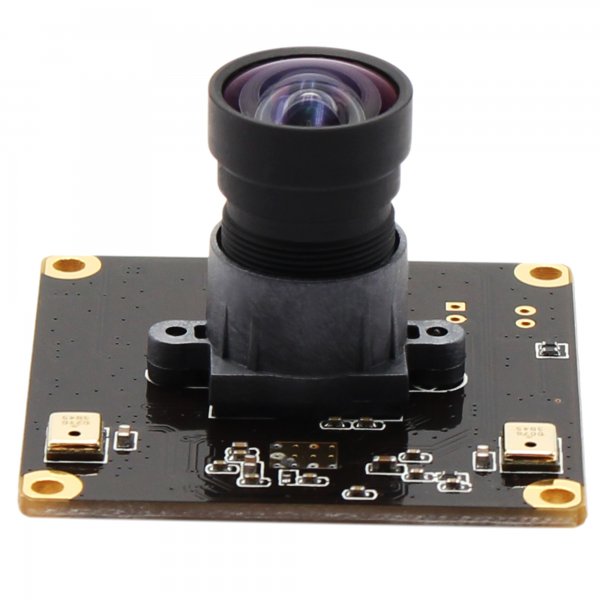

IMX214 Sensor Industrial 3840*2880 13MP Camera module USB 2.0 with 100 degree no distortion len

Product 5/5

Details

Download

Features:

* 1/3” IMX214 sensor for high quality image

* Max resolution 3840x2880

* With HD 100 degree no distortion M12 lens

* With microphone for audio recording

* MJPEG/YUY2 dual output format optional

* Mini board size 38x38mm for embedded application

* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface

* Low power consumption - ideal for portable equipment.

* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model	ELP-USB13M02-V100
Sensor	IMX214 (1/3" )
Max. Resolution	3840(H) *2880 (V) 13Megapixel
Sensitivity	1000mV/Lux-sec
image area	6100µmx4524µm
Compression Format	MJPEG / YUY2(YUYV)
Resolution & Frame	3840x2880 MJPEG@15fps YUY2@1fps/ 3264x2448 MJPEG@ 20fps YUY2@1fps 3840x2160 MJPEG@ 25fps YUY2@1fps/ 2592x1944 MJPEG@ 20fps YUY2@1fps 2048x1536 MJPEG@ 30fps YUY2@3fps/ 1600x1200 MJPEG@ 30fps YUY2@5fps 1920x1080 MJPEG@ 30fps YUY2@5fps/ 1280x960 MJPEG@30fps YUY2@5fps 1280x720 MJPEG@ 30fps YUY2@10fps/ 1024 x 768 MJPEG@ 30fps YUY2@15fps 800 x 600 MJPEG@ 30fps YUY2@20fps/ 640x480 MJPEG@ 30fps YUY2@30fps
Focus	Fixed
Object Distance	8CM-100M
Resolution	1000LW/PH (Center)
interface	USB 2.0 High Speed
Protocol	USB Video Class(UVC)
S/N Ratio	33dB
Shutter Type	Electronic rolling shutter / Frame exposure
AGC/AEC/AWB/ABF	Auto
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	Size: 1/2.3”, FOV: 100Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	220mW
Board size	38X38mm
Storage Temperature	-20~80℃
Working temperature	-10~70℃
Cable	Standard 1m / Optional 2m,3m,5m...
Operating system request	Win XP/Vista/Win7/Win8 / Win9/ Win10/Win11 etc. Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
