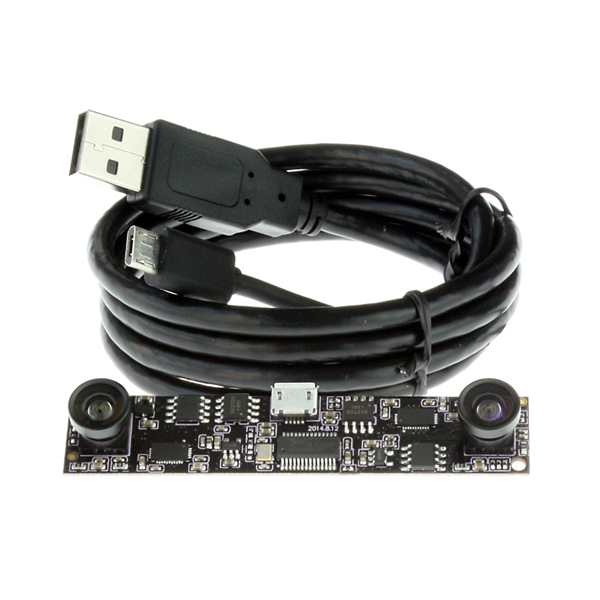

Dual Lens USB Camera Module OV9712 Color CMOS Sensor

Dual Lens USB Camera Module OV9712 Color CMOS Sensor

  • Model: ELP-1MP2CAM001-HOV90
Add to Cart:

Add you Tags
Details
Download

    Dual Lens USB Camera Module OV9712 Color CMOS Sensor

    Main Specifications

    Model

    ELP-1MP2CAM001-HOV90

    Sensor

    OV9712

    Lens Size

    1/4 inch

    Pixel Size

    3.0um X 3.0um

    image area

    3888 µm x 2430 µm

    Max. Resolution

    1280(H)X720(V)

    Compression format

    MJPEG  / YUV2(YUYV)

    Resolution & frame

    1280X720 MJPEG@ 30fps YUY2@10fps

    640X360MJPEG@ 60fps YUY2@30fps

    S/N Ratio

    40dB

    Dynamic Range

    69dB

    Sensitivity

    3.7V/lux-sec@550nm

    Mini illumination

    0. 1lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    HOV 90 degree

    Power supply

    USB BUS POWER   Micro USB

    Power supply

    DC5V

    Operating Voltage

    130mA~180mA

    Working current

    -10~70℃

    Working temperature

    -20~85℃

    Board size /Weight



    Cable

    Standard  1M

    Operating system request

    Win XP/Vista/Win7/Win8

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
