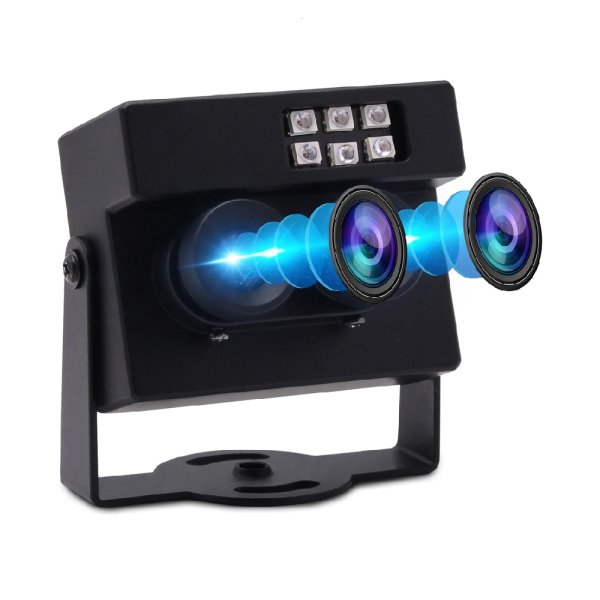

1080P WDR 3D Biometric Face Detection and Recognition Binocular Camera USB 2.0 UVC

1080P WDR 3D Biometric Face Detection and Recognition Binocular Camera USB 2.0 UVC

  • Model: ELP-USB0230X2-V90-BX
Add to Cart:

Add you Tags
Details
Download

    This is a newly developed binocular camera, it is having one 2-Megapixel WDR Color camera and one 2-Megapixel B/W Camera with USB 2.0 output. It is mainly used for the face recognition systems, for the identity verification and safety inspection in bank ATMs, Customs and airport etc.

    Features:

    *2MP Dual lens usb camera module with IR LED board & metal mini black housing
    * Adopt wide dynamic range AR0230 sensor, WDR range up to 105dB
    * Equipped with 2pcs HD no distortion lens
    * Two camera with separate image output, One is color mode,another is block/white Mode
    * With 12pcs ir led board for night vision
    * High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interfac* UVC compliant - support Windows, Linux, Android system with UVC
    *Widely used to in face recognition, biopsy detection etc. Also support secondary development according customers’ own need

    Specification:

    Model

    ELP-USB0230X2-V90-BX

    Sensor

    AR0230

    Lens Size

    1/2.7 inch

    Pixel Size

    3.0µm x 3.0 µm

    Image Area

    3888µm x 2430 µm

    Max. Resolution

    1920(H)X1080(V)

    Compression format

    MJPEG

    Resolution & frame

    Camera0(Left ) Color  &  Camera1(Right) B/W

    MJPEG:1920X1080@30fps/1280X960@30fps/1280X720@30fps

           1024X768@30fps/800X600@30fps/640X480@30fps

           352X288@30fps/320X240@30fps

    YUY2: 1920X1080@5fps/1280X960@5fps/1280X720@5fps

          1024X768@5fps/800X600@15fps/ 640X480@30fps

          352X288@30fps/320X240@30fps

    S/N Ratio

    41dB

    Dynamic Range

    105dB

    Sensitivity

    4.0V/lux-sec@550nm

    Mini illumination

    0 lux (IR)

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class(UVC)

    Support OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    M12 Lens FOV(D) 138 (H) 100 degree

    Power supply

    USB BUS POWER    4P-2.0mm socket

    Power supply

    DC5V

    Working current

    -10~70℃

    Working temperature

    -20~85℃

    Operating system request

    Win XP/Vista/Win7/Win8/Win9/Win10/Win11

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
