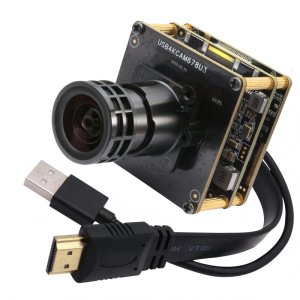

ELP 1/1.8” Sony IMX678 Sensor 4K USB3.0 & HDMI Camera Module with M16 Low Light 4mm Lens

ELP 1/1.8” Sony IMX678 Sensor 4K USB3.0 & HDMI Camera Module with M16 Low Light 4mm Lens

  • Model: ELP-USB4KCAM678U3-F1L4
Add to Cart:

Add you Tags
Details
Download
    Key Features:



    * Excellent Low-Light Performance: Features a large 1/1.8” Sony IMX678 sensor, delivering brilliant image quality even in challenging light, especially paired with a F1 (Aperature 1.0) low-illumination lens.

    * Ultra-Smooth 4K at 60FPS: Delivers stunning 3840x2160 resolution at a fluid 60 frames per second via MJPEG/H.264 compression (USB) and HDMI output, ensuring incredibly smooth and detailed video.

    * Dual & Flexible Output: Equipped with both USB 3.0 and HDMI 2.0 interfaces, supporting three display modes (USB, HDMI, or simultaneous output) for maximum adaptability.

    * Easy Integration: True UVC compliance ensures driver-free plug-and-play operation across Windows, Linux, macOS, Android, and Raspberry Pi.



    Specifications:

    Model

      ELP-USB4KCAM678U3-F1L4

    Sensor

    1/1.8” SONY IMX678

    Pixel Size

    2.0µm x 2.0µm

    Connecting Port Type

    USB 3.0 Interface &HDMI v2.0 Interface

    Display Modes

    I. USB Output

    II. HDMI Output

    III. USB Output +HDMI Output Simultaneous

    HDMI Output

    3840(H)*2160(V) HDMI 60fps

    USB Output

    Max / Default Resolution: 3840(H)*2160(V)

    Video Compression

    MJPEG / YUY2(YUYV) / H.264

    Resolution & Frame Rate

    3840x2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps

    2560x1440 MJPEG 60fps/ H.264 60fps / YUY2 30fps

    1920x1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    1280x720 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    640x480 MJPEG 60fps/ H.264 60fps / YUY2 60fps

    Image Processing Time

    About 10 seconds after opening the preview software

    Central Definition

    1000LW/PH(Center)

    S/N Ratio

    41dB

    Min illumination

    0.05Lux

    Shutter Type

    Electronic Rolling Shutter/ Frame Exposure

    AEC/AWB/AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance,

    Backlight Compensation, Exposure

    Lens Parameter

    M16 Lens, f=4mm, F1.0 (Aperature 1.0), HFOV is approximately 93°.

    Optional Lenses:

    M12 No distortion: 65°/ 85°/ 90°/ 100°

    M12 Normal: 25°/ 38°/ 94°/ 120°/ 130°

    M16: 58°/ 93°/ 110°

    (For other viewing angles, please contact us directly.)

    Power Supply & Interface

    USB Type-C Power Supply, Type-C & HDMI Display Simultaneous

    Operating Voltage

    DC 5V

    Working Current

    700-780mA

    Board Size

    38x38mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    -10°C to 70°C

    USB Cable

    1.2m cable with Type-C port

    HDMI Cable

    1.5m cable with HDMI port

    Operating System Request

    Win7/Win8/Win9/Win10/Win11 etc.

    Linux with UVC;

    MAC-OSX10.4.8 or later;

    Android5.x or above
