Product Model

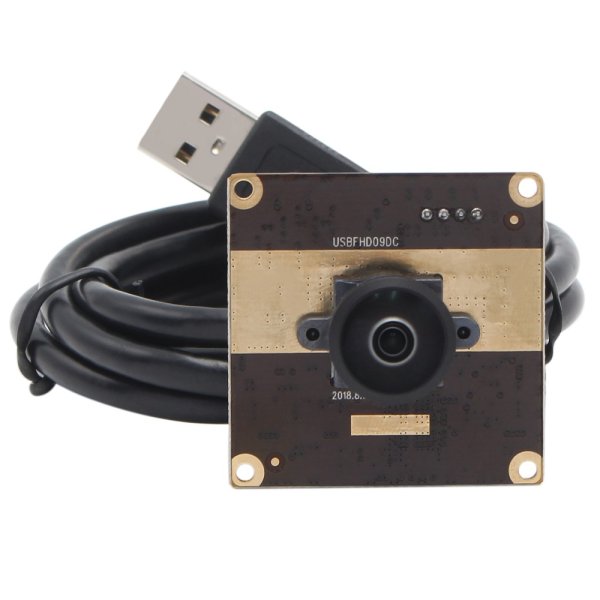

ELP-USBFHD09DC-FD180  (180degree Distortion Correction)

Sensor

AR0330

Lens Size

1/3 inch

Pixel Size

5.07um X 3.38um

Max resolution

1920(H)X1080(V)

2MP

Compression format

H264 /MJPEG / YUV2（YUYV）

Resolution & frame

MJPEG: 1920*1080 @30fps 1280*720 @30fps 640*480 @30fps H264： 1920*1080 @30fps 1280*720 @30fps 640*480 @30fps

YUY2： 1920*1080 @2fps 1280*720 @2fps 640*480 @30fps

S/N Ratio

39dB

Dynamic Range

72.4dB

Sensitivity

2.0V/lux-sec@550nm

Mini illumination

0. 1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

Support OTG Protocol

USB2.0 OTG

Auto Exposure Control/AEC

Support

Auto White Balance/ AEB

Support

Auto Gain Control/AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

Lens

180  degree Lens

Power supply

USB BUS POWER

4P-2.0mm Plug

Operating Voltage

DC5V

Working current

140mA~220mA

Working temperature

-10～70℃

Storage

temperature

-20～85℃

Board size /Weight

38X38mm/ about 30g

Cable Length

Standard 1 meter / Option 2/3/5 meters

Operating system request

Win7/ Win8 /Win9 /Win10/Win11

Linux 2.6 or above Android 4.0 or above
